Commercial Furniture Acoustic Folding Partition Walls For Meeting Room
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity available |
|---|---|
| Price: | US $75 - 102 per square meter. |
| Packaging Details: | Paper Carton, outside with wooden boxes. |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 8000 square meters per month. |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Application: | Meeting Room Partitions |
|---|---|---|---|
| Finish: | Melamine Surface,as Request | Feature: | Sound Proof |
| Frame Material: | Aluminum | Function: | Room Divider / Room Partition |
| High Light: | soundproof folding partition,folding room partitions |
||
Product Description

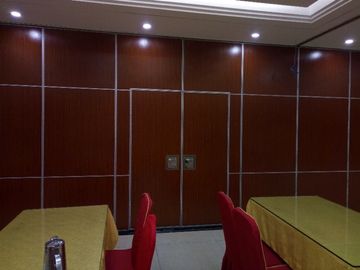

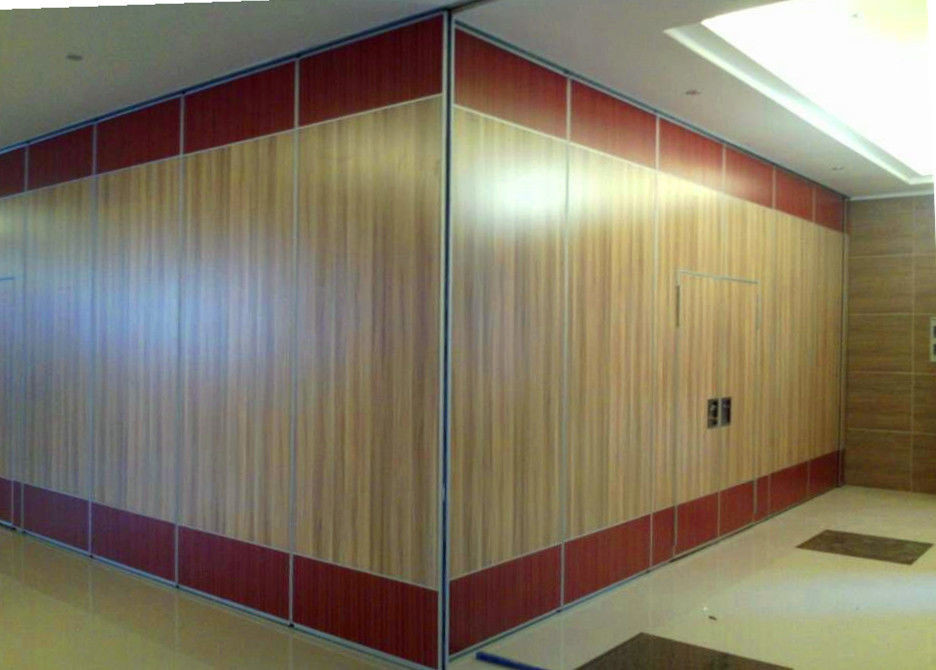

Commercial Furniture Type Acoustic Movable Folding Partition Walls for Meeting Room
Folding partition walls details
65 mm Type
Product information: The thickness of the folding partition wall is 65mm. There are single-piece single-wheel and single-plate two-wheel type. U-shaped and L-shaped door can be opened. The maximum load of each folding partition wall is 225kg, and the top and bottom expansion range is 22.5. Mm.
Nature of the product: The folding partition wall is connected by male and female slots, which has good sealing and sound insulation performance.
Among them: the reference surface is MDF or splint, its sound insulation coefficient RW=32dB, density is 24kg/m2.
Product use: Suitable for partition height between 2 meters and 4 meters.
85 mm Type
Product information: The thickness of the folding partition walls is 85mm. There are single-piece single-wheel and single-piece two-wheel type. U-shaped and L-shaped door middle doors can be opened. The maximum load of each folding partition walls is 450KG, and the bottom top telescopic range is 22.5mm.
Nature of the product: The folding partition wall is connected by male and female slots, which has good sealing and sound insulation performance.
Among them: the reference surface is MDF or splint, its sound insulation coefficient RW=40dB, density is 32kg/m2,.
Product use: Suitable for folding partition walls height between 2 meters and 6 meters.
100 mm Type
Product information: The thickness of the folding partition walls is 100mm. There are single-piece single-wheel and single-piece double-type. U-shaped and L-shaped door can be opened. The maximum load of each folding partition walls is 175kg, and the top and bottom telescopic range is 22.5mm. .
Nature of the product: The folding partition wall is connected by male and female slots, which has good sealing and sound insulation performance.
Among them: the reference surface is MDF or splint, its sound insulation coefficient RW=50dB, density is 38kg/m2.
Product use: Suitable for folding partition walls height between 5 meters and 9 meters.
Folding partition walls features
1. Folding partition walls products are modern and advanced architectural decoration style, which can quickly separate the space, easy to use, and has sound insulation, heat insulation and fireproof function.
2. The folding partition wall panel is made of high-strength aluminum alloy frame, special rubber, high-quality sound insulation cotton and veneer, the board surface is flat, strong and resistant to collision.
3. The folding partition wall panel is hoisted by straight and universal steel wheels embedded in the aluminum alloy track, with flexible and variable track orientation, suitable for a variety of different storage requirements.
4. The ground does not lay the track, only the rail is installed on the ceiling, and the ceiling is flat; does not affect the overall continuity of the space, change invisible.
5. The sound insulation performance of the wall panel and the horizontal rubber insulation seal free extension and reinforcement of the wall panel.
6. The telescopic performance operation mode fully reflects the people-oriented concept, flexible touch, safer and more durable than the spring operation.
7. According to the needs of the wall panel can be installed single door and double door to facilitate access.
8. The folding partition wall surface can be combined with a variety of finishes to achieve a variety of decorative effects.
9. This type of folding partition wall is not suitable for household use, suitable for hotel office conference room school and other public places
Folding partition walls technical information
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
