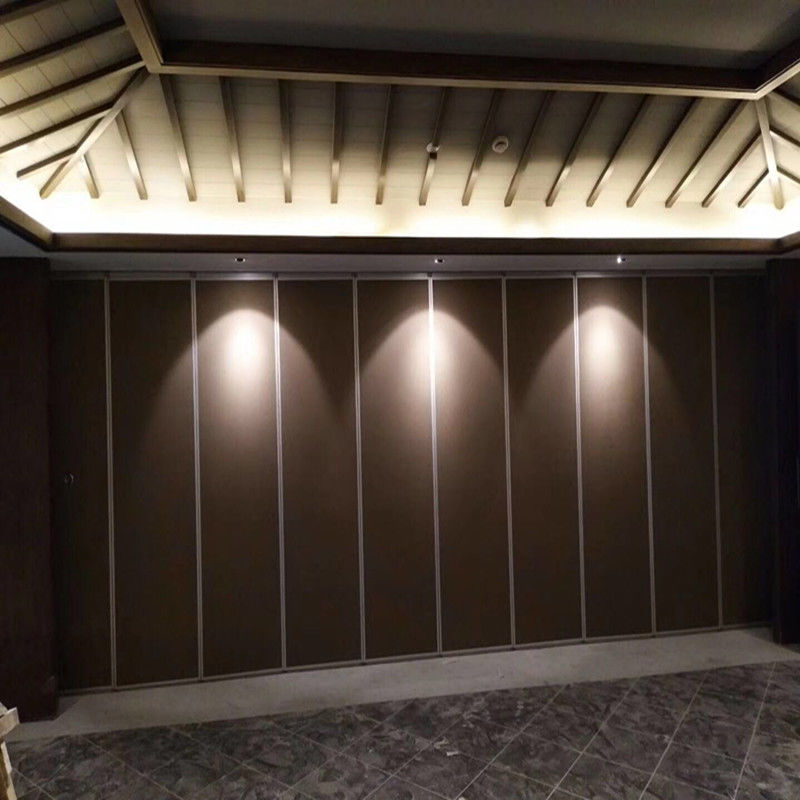

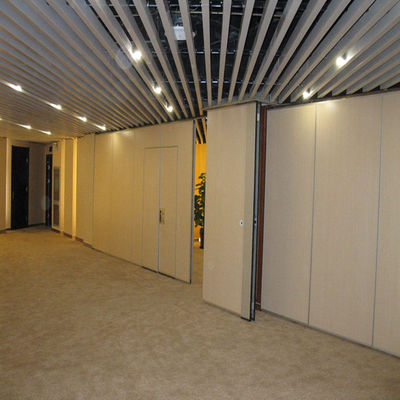

Ballroom Sound - Proofing Sliding Partition Walls Panel Width 500mm - 1220mm
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $60-105 per square meter. |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. Outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Feature: | Sound Proofing |
|---|---|---|---|
| Color: | Accept Customized | Application: | Banquet Hall,hotel,ballroom |
| Panel Width: | 500 Mm--1220 Mm | Finish: | Melamine |
| Height: | 2000 - 6000 Mm | Style: | Folding Sliding Doors |
| High Light: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description
New Style Banquet Hall Operable Sound-proofing Sliding Partition Walls
Sliding partition walls features:
1) Easy element adjustment after installation.
2) Sliding partition walls track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
3) Sliding partition walls panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
4) Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.
Sliding partition walls construction method
2.Sliding partition walls installation: according to the design drawing, draw on each partition panel to mark the line wheel, fix the wheel with screws on the partition board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
3.Debugging: sliding partition walls panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work
Bunge Sliding Partition Walls Systems-Technical Information
| Description of the whole system | |
| Item | Soundproof sliding partition walls |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-53db |
| Description of partition accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,melamine,HPL,fabric,PU,wood veer |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
| Glass wool density inside | 64kg/m3 |
| Interior profile | Wooden, aluminum, steel |
| Application | Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium |
Sliding Partition Walls Details
Track: The sliding partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The sliding partition walls track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The sliding partition walls panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The sound proof partitions panel faces shall be finished with selected material.
Panel Surface Finish:The sliding partition walls panel surface will be as per the clients requirement finished either in factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.
