Multi - Function Room Folding Sound Proof Partition Walls With Aluminum Tracks Rollers
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-128 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meter per month |
|
Detail Information |
|||
| Feature: | Sound Insulation | Finish: | Melamine |
|---|---|---|---|
| Weight: | 30-60 Kg/m² | Application: | Banquet Hall,hotel,restaurant |
| Based Board: | MDF | Product Name: | Sound Proof Partitions |
| High Light: | movable sound proof partitions,movable soundproof partition |
||
Product Description

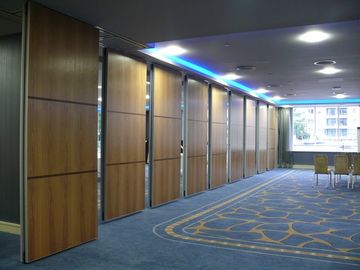

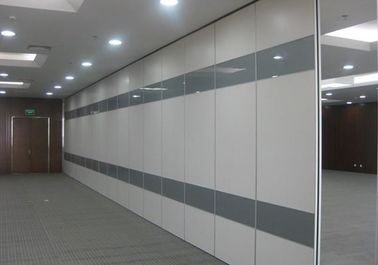

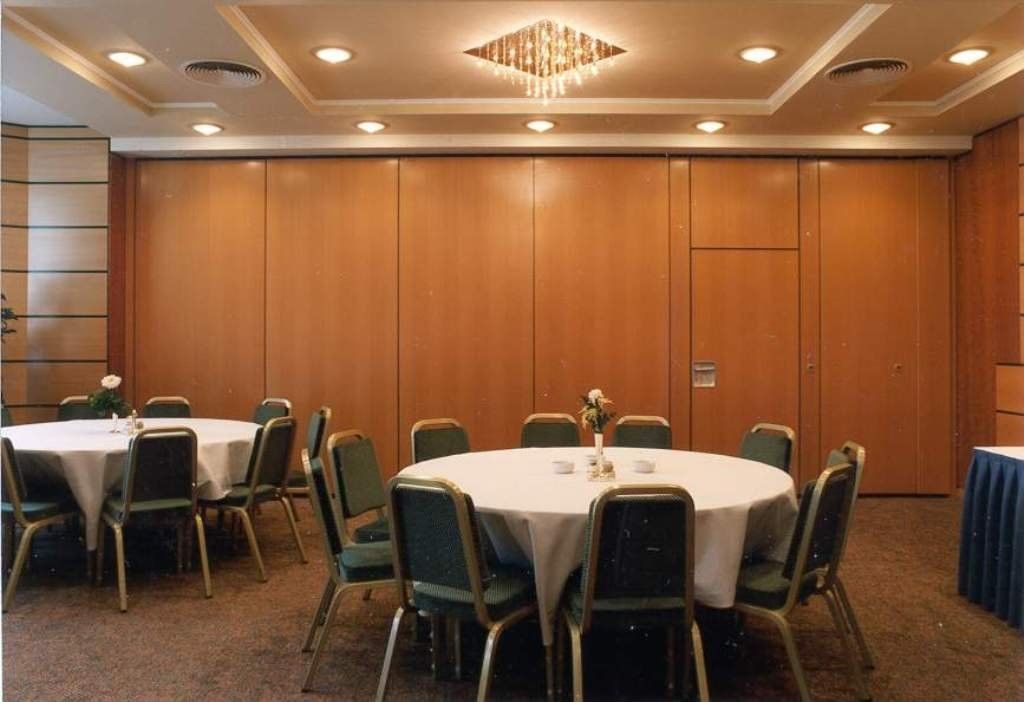

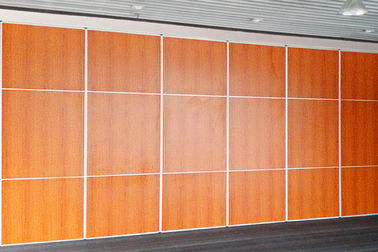

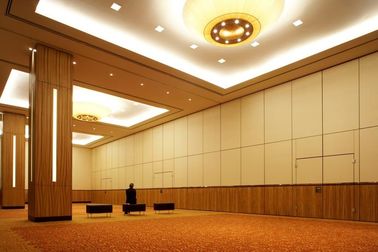

Multi-Function Room Folding Sound Proof Partition Walls with Aluminum Tracks Rollers
Sound proof partitions details
BUNGE has high standard of supply, installation, servicing and maintenance, has affirmed their position as market leaders for acoustic folding partitions, acoustic partitions, acoustic sliding partitions, moveable walls,
Concertina partitions, folding & accordion partitions, folding glass walls, folding glazed partitions, folding glazed walls, folding partition systems, folding partitions, folding room dividers, folding walls and frame less
Glass walls, frame less glass partitions, glass movable walls, glass office partitions, movable partitions, moveable partition walls, moveable partitions, moveable wall systems, movable walls, operable glass walls,
Operable walls, partition walls, room divider screens, room dividers, sliding / folding / movable walls, sliding / folding partitions, sliding glass walls, sliding partitions, sliding room dividers, sliding walls, vinyl sliding concertina partitions, vinyl partitions, bottom rolling partitions, floor mounted partitions.
The experienced company work closely with; architects, main contractors, ceiling and partitioning companies on a nationwide basis, ensuring that the standard of products and services surpasses competitors.
Sound proof partitions technicals
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Sound proof partitions features:
>>Panel suspension: Movable, top hung system without the need for a floor track.
>>Panel width: Each panel 600mm to 1200mm.
>>Roller on panel: Single roller or double roller.
>>Soundproof rate: 32Db, 38dB,43dB,48dB,53dB Rw.
>>Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
>>Track: Aluminum track or steel track.
>>Top & bottom seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
>>Panel stacking: Numerous panel stacking options for complete flexibility.
>>Panel surface: MDF, Plywood, Wall paper, Fabric, Leather, Natural wood veneer, Melamine, Wood moldings, etc
