Function Room Sliding Partition Walls / Hanging System Acoustic Movable Walls
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-128 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meter per month |
|
Detail Information |
|||
| Feature: | Sound Insulation | Finish: | Melamine |
|---|---|---|---|
| Weight: | 30-60 Kg/m² | Application: | Banquet Hall,hotel,restaurant |
| Product Name: | Sliding Partition Walls | Based Board: | MDF |
| High Light: | sliding folding partition,sound proof sliding partitions |
||
Product Description

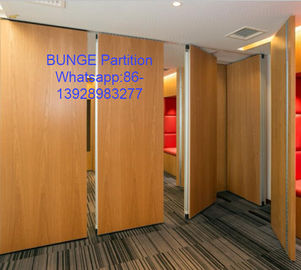

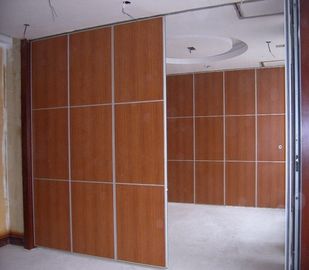

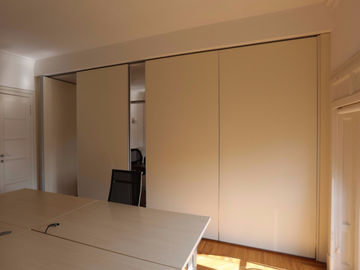

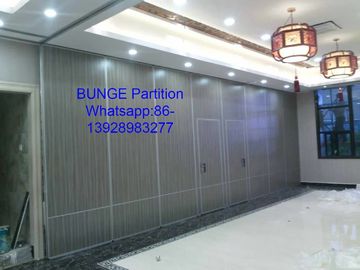

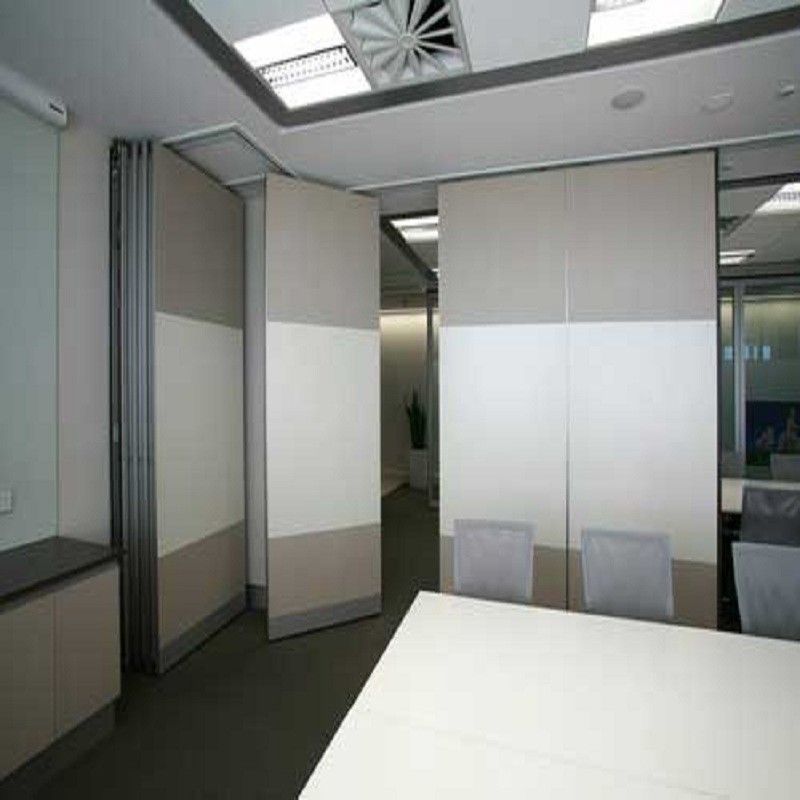

Function Room Sliding Tracks Rollers Hanging System Acoustic Wall Partitions
Sliding partition walls details
Nowadays,sliding partition walls can divide the space speedy and conveniently.They are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness,the sliding partition walls allow large rooms to be conveniently sub-divided to maximum space utilisation.Principle applications include office interiors,meeting rooms,sports and leisure facilities,schools,hotel banquet hall, churches,conference and function halls, exhibition centers,banks,restaurants and so on.
The sliding partition walls have features of good sound insulation,a wide range of uses and convenience.They are the first choice for dividing the space or interior decorating.According to the different height,there are 4 types of sliding partition walls:65-type,85-type,100-type and 125 ultra-high system,all of them can apply to different height.So please do not hesitate to send us your dimension,we will give you a professional planning based on your project site soon!
The sliding partition walls are made of good quality 6063-T5 aluminum tracks and wheels.All of the sliding partition walls accessories are of aluminum materials,including the frames,strips,connectors and so on.There is sound insulation rubber around each panel,which can help to insulate the sound going through.If you just would like to import the partition walls accessories,also welcome to contact us at any time.
Sliding partition walls technicals
| Model | BG-65 series | BG-80 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
| Side walls sealing strength | Double seal tape | |||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | |||
Action Now:
1:Buy 30 square meters Get 5% Discount.
2:Buy 80 square meters Get 10% Discount.
3:Get a FREE SAMPLE.
4:Support a 3 YEARS WARRANTY.
5:Contact us for more details-Whatsapp:008613928983277.
|
Description of Goods |
Acoustic partition walls |
| Each panel load-bearing weight | 225kgs/ 450kgs/ 650kgs |
| Material | MDF, Fabric, sound absorption materials,aluminium |
| suitable height space | from 2m-16m |
| Frame Marterial | Aluminum Alloy |
| Thickness | 65/85/100mm |
| Core Material | Standard MDF or Plywood |
| Certificate | SGS ,CE |
Description :
The sliding partition walls panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.
Operation :
Sliding partition walls shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track :
The sliding partition walls tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
Trolley :
BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
Aluminum trim :
The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used .
Panels :
The sliding partition walls panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material .
· Basic Panels shall be equal in module.
· Approx. Weight kg/ square meter : 25 kg
· Maximum height : 4000mm.
Panel Surface Finish :
The sliding partition walls panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
Retractable mechanism :
The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode . Single crank type mechanisms shall activate floor and head seals .
Seals :
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
