Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 85 mm folding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 20 square meters
Price: $80-130 per square meter.
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month.
Get Best Price Contact Now

Detail Information

Color: Accept Customized Feature: Sound Proofing
Thickness: 85 Mm(3 1/4 Inch) Material: MDF+Aluminum
Product Name: Folding Partition Walls Width: 800-1230 Mm
High Light:

acoustic folding partition

,

folding room partitions

Product Description

Classroom Moveable Wall Aluminium Accessories Folding Room Partition Walls



Conglatulation for folding partition walls project:



Vancouver restaurant running their food business in Vancouver, Canda. The restaurant owners wanted to manage the room flexibly and make their restaurant more functional, so they came to Bunge for space solutions. According to the owner's request, Bunge company used 4 sets of folding partition walls with full height of 3200mm to divide the room into 4 parts.



Classroom Moveable Folding Room Partitions With Aluminium Accessories 0

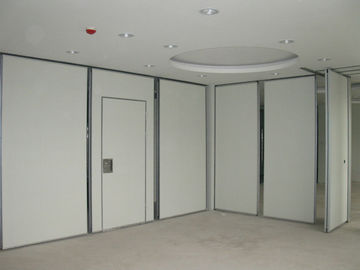

BUNGE folding room partition wall with pass door, open single pass door was set to enable people pass through the rooms conveniently. The owners approved the solution and production was proceeded accordingly.

Classroom Moveable Folding Room Partitions With Aluminium Accessories 1

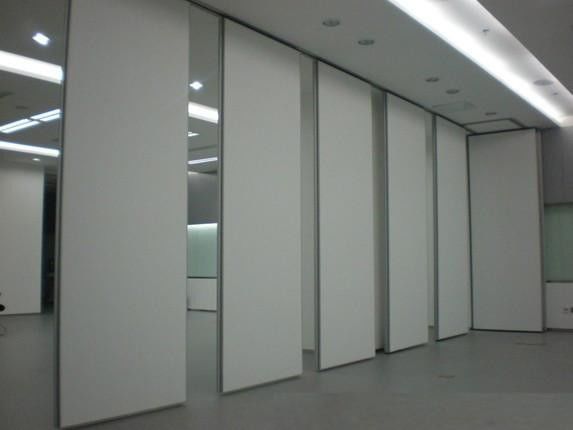

BUNGE movable folding partition walls can seperate the space so easy.

Classroom Moveable Folding Room Partitions With Aluminium Accessories 2



Folding partition walls details:



Track: The folding partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.


Panels:The folding partition walls panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.


Panel Surface Finish:The folding partition walls panel surface will be as per the clients requirement finished either in factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.


Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.

Classroom Moveable Folding Room Partitions With Aluminium Accessories 3

Technical information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Classroom Moveable Folding Room Partitions With Aluminium Accessories 4
