Acoustic Folding Partition Walls With Sliding Hanging System Heat Insulation
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 101 / 128 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Height: | 5 M |
|---|---|---|---|
| Thickness: | 65 Mm | Application: | Meeting Room,office |
| Finished: | Melamine,leather,fabric | Service: | OEM Service |
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description

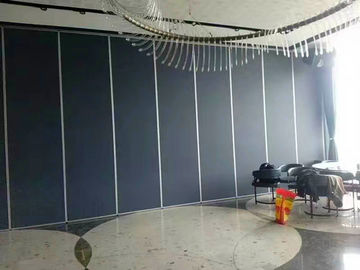

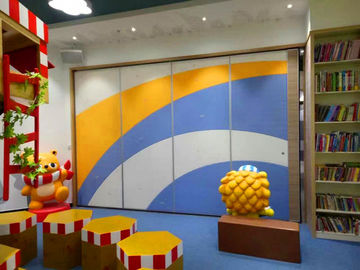

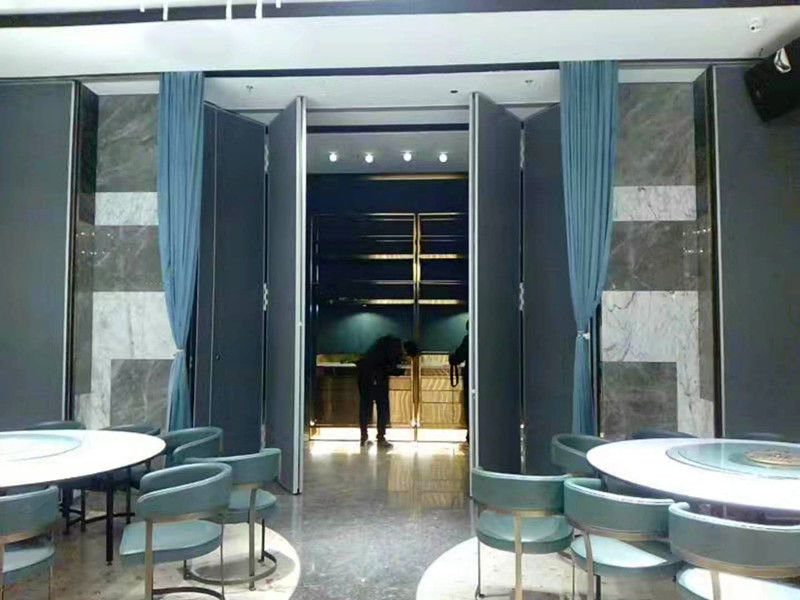

Sliding Hanging System Acoustic Conference Room Folding Partition Wall
Specification:
The folding partition walls we can supply and install. It can allow 2 rooms to become one large area.
It is easy to operate, with manual operation available if you prefer.The folding walls can provide impressive sound reduction between rooms, yet open quickly to open up the space.
Folding partition wall can be top hung to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.
Feature:
1.Folding partition wall is modernized decoration style. It can separate the space speedy and conveniently. And it has sound insulation and heat insulation and fireproof function.
2.The partition panel is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3.The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.
4. It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5.Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.

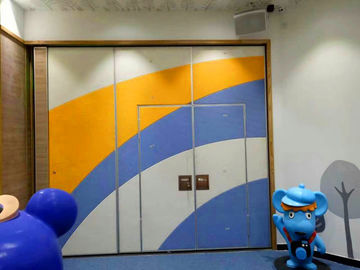

6.We can add single or double doors on the board for convenience.
Surface:
There are wide of range face finishes are available :melamine faced MDF or Plywood, fabric, carpet, fabric, artificial, leather,wood veneer, high pressure laminate,formic ,acoustic panel,white board etc.
Panels can also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
Folding partition works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Packing and shipping:
Packing details is Carton package, MDF batten on four section sides ,foam board on both front face.For special surface, like glass partition wall we can get wooden boxes packing for you.
Sea transport is a common mode of transportation.In an emergency, can be air freight.
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
