Sliding Aluminium Track Soundproof Office Partition Walls / Movable Room Dividers
|Place of Origin:
|Series 85 mm sound proof partitions
Payment & Shipping Terms:
|Minimum Order Quantity:
|10 square meters
|91 / 138 dollar per square meter
|Carton package, MDF batten on four section sides ,foam board on both front face.
|Shipped in 10 days after payment, based on the quantity.
|D/A, D/P, L/C, T/T, Western Union, MoneyGram
|5000 square meters per month
|Sliding Door Type:
|Sound Proof Partitions
sounproof folding partition,
movable soundproof partition

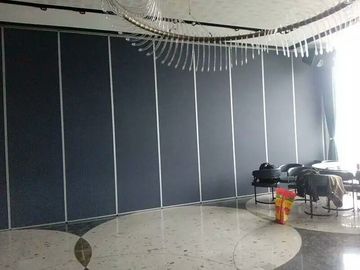

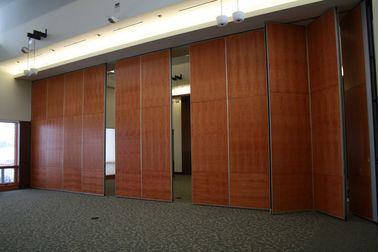

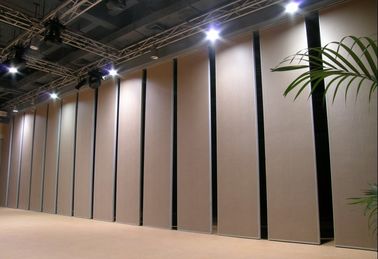

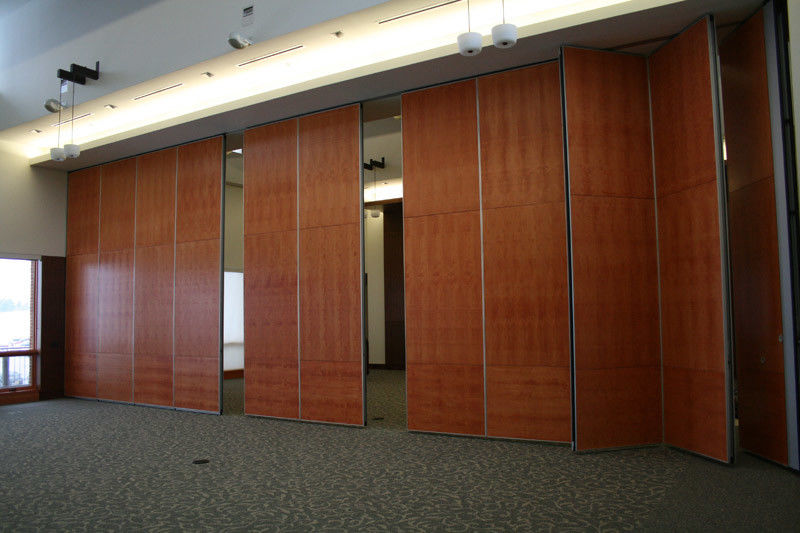

Sliding Aluminium Track Soundproof Movable Office Partition Wall
Sound proof partition wall allow flexible and efficient space utilization combined with excellent acoustic performance in areas such as offices, hotels, exhibition centres, studios and many other applications. With the JCW Acoustic movable walls system, you have a quality, flexible, cost effective solution suitable for most sound-insulated room concepts.
Each panel is manufactured to suit your needs, acoustics range from 37dB to 53dB.Each panel made easy for you to manoeuvre.
Panel surfaces from veneer to laminates, enabling us to work with your interior design needs.
Manufactured to meet the acoustic requirements for education installations to school, colleges and Universities are second nature.
Product designed for a quick and easy set up operation.
Each panel is hinged together which allows you to move all the panels in one swift effort. We incorporate an access pass door as standard to give you extra space flexibility.
With each project and opening being different this product is ideal when there is no structural support as this system can be floor supported.
This product has been designed with your economical budget in mind,it is the versatile, durable and cost effective solution.
|Top hung only
|Top hung only
|Top hung only
|Single door or Double door
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)
Sound Proof Partitions Feature:
1.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalise on the revenue potential of commercial space or simply create the most efficient use of floor space.
2.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 53 dB noise reduction is achieved with a combination of acoustic infill’s and operable top and bottom seals.
3.Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.
4.Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
5.Panel options ~ Individual panels can be constructed with either manual or semi automatic retractable top and bottom seal. Panels are also available curved or with inset pass doors and glazed cut outs
Installation of one of these partitions will divide the domestic environment, physically or acoustically,
into two or more independent spaces. For example, kitchen/living room, living room/study, living/sleeping areas, playroom/bedroom, living room/gym, and double/single rooms.These systems are made up of independent elements having a convenient minimum thickness of 12 mm or 9 mm.
They slide and position themselves from an overhead ceiling-mounted aluminium guide.No guide or bottom rollers are necessary. There are no limits to possible panel surface which include melamine, laminates, vinyl, fabric, wood.
In this realization, the studio/room environment is separated from the living room by the movable partition walls covered with decorated fabric; an original solution combining functionality and requirement in the choice of materials and colors.
The soundproof partition wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85 mm and depending on the insulation material ensures a soundproof resistance of 40-49 dB (decibels).
When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages.
This enables the walls height to be adjusted by 15 mm. The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (concrete ceiling, steel structure, wood beam etc.).
