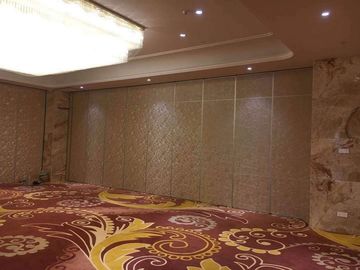

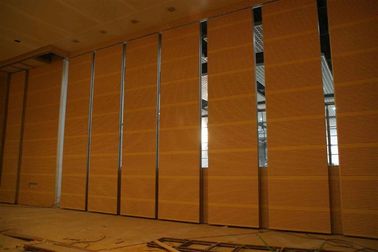

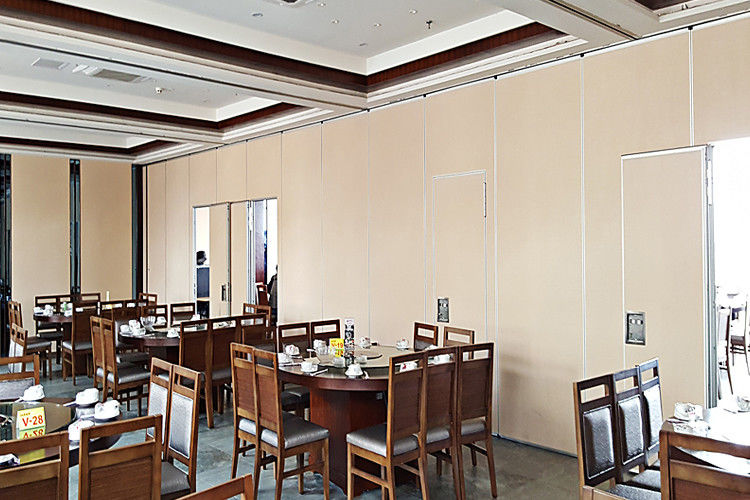

Fireproof Aluminum Frame Folding Partition Walls For Conference Room
|Place of Origin:||Guangdong|
|Model Number:||85 mm folding partition walls|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||US Dollars 80 - 120 per square meters|
|Packaging Details:||Carton package, MDF batten on four section sides , foam board on both front face.|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50000 square meters per month|
|Open Style:||Sliding||Product Name:||Folding Partition Walls|
|Feature:||Sound Proofing||Size:||100 Mm|
|Color:||Accept Customized||Application:||Office,hotel,conference Room|
|Panel Width:||500 Mm--1230 Mm||Door Material:||Melamine Board|
|Width:||85 Mm(3 1/4 Inch)|
acoustic folding partition,
folding room partitions
Conference Room Cheap Price of Aluminum Frame Folding Partition Walls Cost
The difference between the melamine board and the fireproof board
The melamine cyanide board is also called a double veneer. This kind of plate is a paper printed with color or imitation wood grain. After immersed in melamine transparent resin, it is affixed to the surface of the substrate and then hot-formed. After the melamine resin is cured, The veneer has good physical properties such as wear resistance, scratch resistance, etc., and has a certain resistance to fire and excellent chemical properties, so it is more suitable as a kitchen furniture requirements, this active partition plate veneer is Manufacturers in the factory when the one-time hot pressure, cabinet manufacturers do not need secondary processing, as long as the cutting board can be sealed, more affordable.
Fireproof board: Its standard name is fire board, but it is not really afraid of fire, but it has a certain fire resistance. Fire door board is made of fire board and veneer board (also useful for density board), After the cabinet factory pressed and made. Comparing with the melamine board fire board processing more troublesome, melamine board activity partition can be directly cut board, and the fire board needs spray pressure or cold pressure molding before The use of cutting, fire board veneer is generally composed of three layers of surface paper, colored paper, base paper (multi-layer kraft paper).
The chemical protection board is generally composed of three layers of surface paper, colored paper and base paper (multi-layer kraft paper). The surface paper and colored paper are impregnated with a melamine resin component, so that the fire-resistant board has physical properties such as abrasion resistance and scratch resistance. Multi-layer kraft paper has good impact resistance and flexibility for the fire-resistant board. The fire board is thicker in three layers, and the melamine board has only one layer in the veneer, which is relatively thin, so the fire board is generally Wear resistance, scratch resistance and other properties are better than melamine cyanide board, while melamine cyanide board is lower in price than fire board. Although the two materials in the veneer material contain the same resin, the thickness and structure are different, resulting in performance. There are obvious differences.
How do the goods packing?
Corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
Technical data of Type 65 movable partition :
|Panel Suspension||Top hanging system without the need for a floor track.|
|Panel Width||Each panel 600mm-1200mm.|
|Track||Aluminum Or Steel Track|
|Roller on panel||Single or Double Roller|
|Panel Frames||Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.|
|Top and bottom seals||Top and bottom pressure retractable seals ensure effortless moved and locked.|
|Module||700mm - 1200mm maximum.|
|Panel stacking||Numerous panel stacking options for complete flexibility.|
|Panel Surface||MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.|
|Finishes||Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.|
The features of the folding partition walls
1. Only has ceiling rails, no ground rails, suspended movements.
2. Multi-directional, multi-angle movement.
3. Height can be achieved from 2 meters to 16 meters.
4. The choice of decorative surface, can match the design of a variety of decorative effects.
5. The active partition can open the door, single door or double door, or open the window.
6. The activity cut off fire, noise, good insulation properties.
7. The main frame of the hotel can be made into any fashionable color or pattern.
8. The hotel has high repeatability, long service life, easy cleaning and maintenance.
9. Energy saving and environmental protection, does not produce any decoration garbage.
