Wooden Sound Proofing Folding Sliding Partition Walls STC Standard
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Open Style: | Sliding | Product Name: | Folding Partition Walls |
|---|---|---|---|
| Feature: | Sound Proofing | Size: | 100 Mm |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Width: | 65 Mm（2 9/16 Inch） | ||
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description

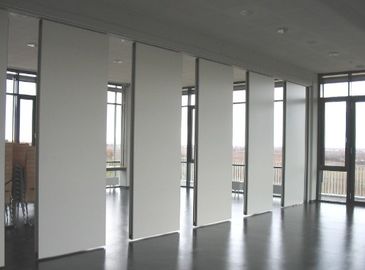

Conference Room Wooden Sound Proofing Folding Sliding Partition Walls
The details of folding partition walls
Our operable or movable folding partition walls are the quality option for Maximilian the use of space within offices, educational establishments and hotels.
Using a system of individual interlocking panels that once in place give the same quality, aesthetics and sound reduction as a permanent partition wall they are the ideal solution for use in larger areas such as conference and meeting rooms where the space is used for a diverse range of activities.
Each folding partition walls panel within a movable partition wall system can be stored away completely when not in use to maximize the available floor space. Additionally there are numerous ways of stacking or configuring the individual acoustic wall panels to give full versatility on how the area is used.
Structure
The Steel panels are manufactured of acoustical substrate pressure laminated to both sides of steel framing members. The finish material can be wrapped around the vertical edges of the panel to create a seamless appearance between adjacent panels (standard) or the vertical edge can be completely encapsulated and protected by a decorative aluminum trim (optional). For added durability, an optional steel skin can be laminated on top of the substrate material.
The folding partition wall panels are available with standard acoustical substrate or optional steel skins for added durability.
Standard brimless vertical astral provide a positive interlock with adjacent panels that prevent sound leaks while producing a minimal seamless appearance at the panel face.
With a standard STC rating of 42, 45, 49, 50, and 51, offers a wide selection of sound control choices.
All folding partition walls panel components (top seals, bottom seals, expander closure mechanisms, etc.) are accessible from the panel perimeter and do not require removal of panel faces making panels the most serviceable panel on the market today.
Technical data of Type 65 movable partition :
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Application:
The folding partition walls within any building strongly impacts our experience. Noise is a major contributor to stress and affects our ability to concentrate at work. modern architecture often exacerbates noise due to the popularity of hard materials such as plasterboard, concrete, wood and glass in modern design.
Our folding partition walls control noise resulting in increased comfort and productivity. the folding partition wall panels soak up reflected sound leaving more space to think and communicate without having to compete with excessive background noise.
Our folding partition wall panels are used in many different environments, including:
Offices - to increase productivity and reduce distractions.
Factories - to improve working conditions and comply with health and safety legislation.
Schools - to improve learning standards and speech intelligibility, especially for those with learning difficulties.
Community Halls - to bring noise levels under control making group activities more enjoyable.
