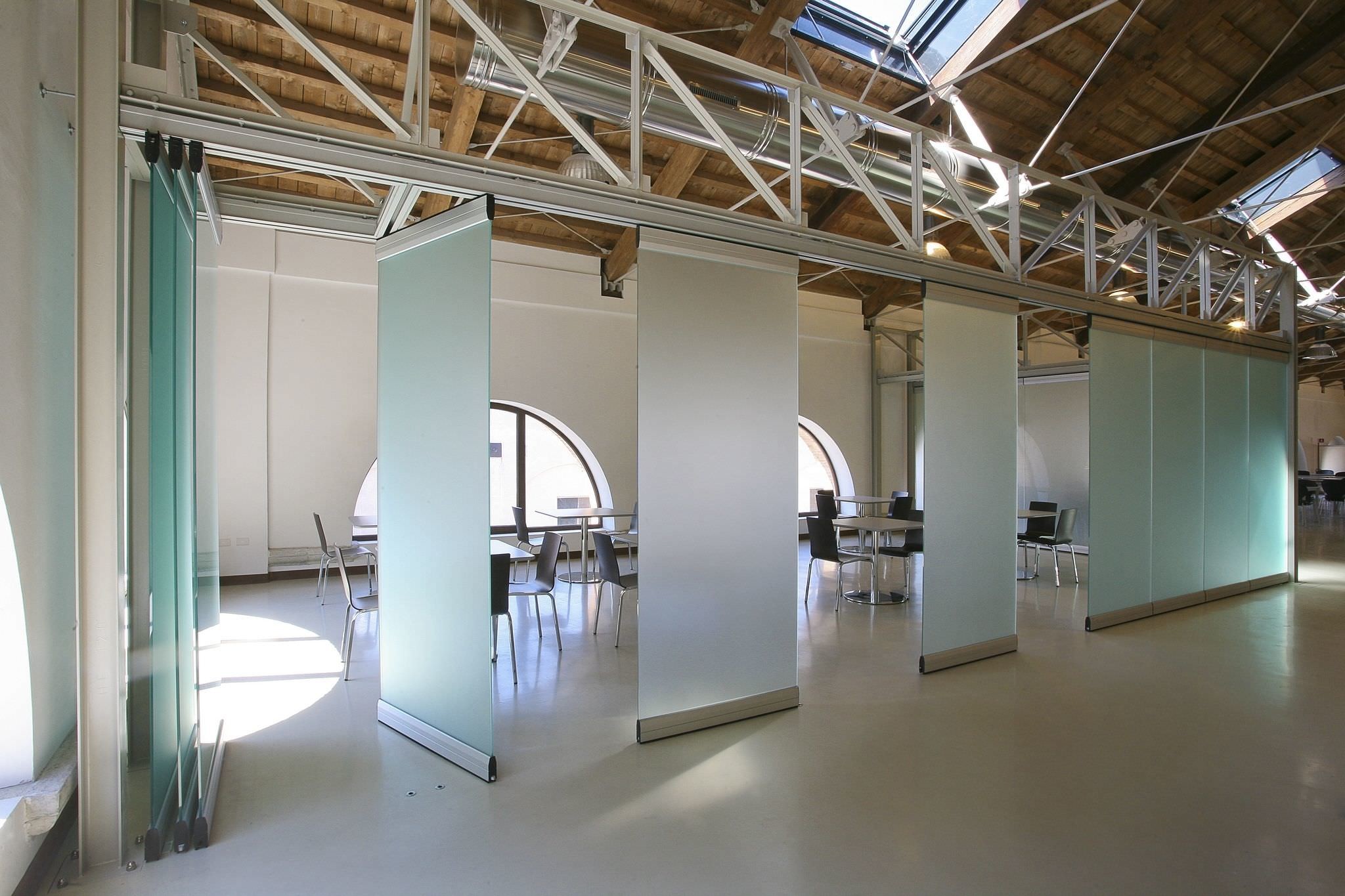

Conference Room Portable Tempered Sliding Glass Partition Walls
|Place of Origin:||Guangdong|
|Model Number:||Series 85 mm glass partition walls|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 squaremeters|
|Price:||68/ 102 dollars per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides , foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||5000 squaremeters per month|
|Panel Width:||500 Mm--1220 Mm||Material:||MDF+Aluminum|
|Application:||Hotel,Banquet Hall||Color:||Color Selective (Customized)|
|Thickness:||85 Mm(3 1/4 Inch)||Finishing:||Melamine,fabric,leather|
|Service:||OEM ODM||Product Name:||Sliding Partition Walls|
sliding folding partition,
sound proof sliding partitions
High Quality Portable Australia Standard Office Sliding Tempered Glass Partition Walls
1. 5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.
2. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.
3. It withstands abrupt temperature change of 220 Centigrade.
4. Sizes are produced as per customer request. Once tempered, it can not be cut down.
Bunge Glass Partition Systems-Technical Information
|Series||BG65 Glazing Glass Partition||BG85 Aluminum Frame Glass Partition||BG85 Sound proof Glass Partition|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel height||Up to 3000mm||Up to 6000mm||Up to 6000mm|
|Frame construction||Top and bottom aluminum||Aluminum frame||Aluminum frame|
|Glass thickness||10mm single glass||10mm or 12mm single glass||double 10mm glass|
|Fire safety||Optional Class O||Optional Class O||Optional Class O|
|Vertical profiles||n/a||n/a||Aluminum anodised with sealing profiles|
|Retractable seals||n/a||n/a||Aluminum black with double rubber seals|
|Operation of seals||n/a||n/a|
|Pass doors||Fixed full height door||Fixed full height door||Fixed full height door|
|Locking||Optional lock to panel||Optional lock to panel||Optional lock to panel|
|Weight||Approx 30 kg/sq M||Approx 32 kg/sq M||Approx 50 kg/sq M|
Tempered glass is a heat toughened safety glass. It has undergone a special heat treatment to increase its strength and resistance to impact. In fact, tempered glass is approximately five times more resistant than normal glass. As an example, a piece of 8mm tempered glass will be able to withstand a steel ball weighing 500g dropped from a height of 2 meters.
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
