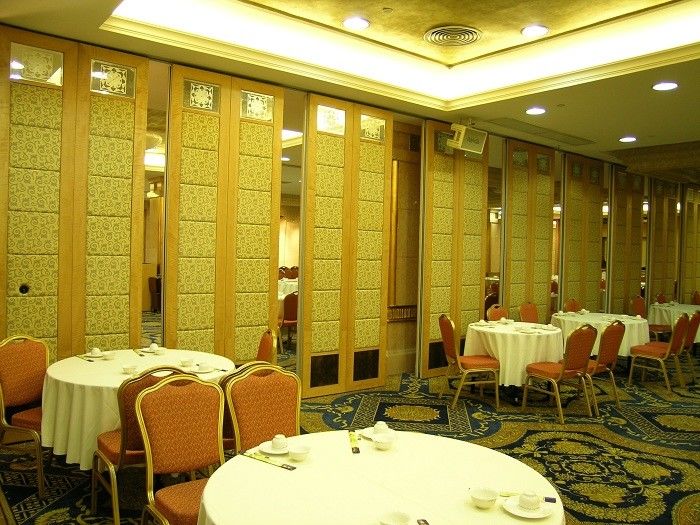

Foldable and Operable Sound Proof Partitions For Hotel 6m Height
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 85 mm soundproof partition walls|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||80 / 120 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Thickness:||85 Mm||Height:||6 M|
|Product Name:||Soundproof Partition Walls||Structure:||Aluminum Track,Trolley Bearing,Acoustic Door Panel|
sounproof folding partition,
movable sound proof partitions
Factory Direct Sale Foldable and Operable Sound Proof Partition For Hotel
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
Sound insulation from R'w 32 dB to R'w 50 dB.
Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
To ensure additional friction connection, shall be integrated with magnetic strip.
Spring load retractable sound seal at the top and bottom element.
Face panel hung in acoustic free suspension, for improved sound insulation, easy redecoration of surface panels. Edges shall be protected with Aluminium profiles.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
(1)Constructing location: keep dry, the temperature should be higher than 10'C, the widest humidity range should confined to 40%-60% after construction 24 hours before constructing, the location should reach the standards as above.
(2)Acoustic panels: for the acoustic panels accommodated to the circumstance of constructing, please place the panels in the constructing location for 48 hours, check up the type, specification and amount of the panels before constructing.
(3)Keels: fix the keels on the wall flatly according to the plan, the keels should be flat, slick, no rust, no metamorphosis; the wall must be construct according to the standards, the keels suitable install with acoustic panels, leave smaller than 500mm space between each wooden keel(smaller than 600mm of light steel keel), install the keels vertically with acoustic panels.
With more economy and higher decorative, beautiful and safe, will not scratch the skin.
Installation does not affect the construction of smallpox and the ground.
Optional with a variety of occasions partition wall, can be customized according to customer requirements.
In the re-assembly can make full use of building materials.
Selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Inside packing:Packed with plastic protective film to protect each piece.
Carton Packing:Each pcs pack in one plastic bag.Numbers of quantity put in one carton.
Wood Pallet packing:Bundles or cartons packing.Numbers of bundles or cartons laden on one wood pallet.
