Artistic Fire Resistant Movable Sliding Partition Walls For Banquet Hall
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 squaremeters |
|---|---|
| Price: | 68/ 102 dollars per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 squaremeters per month |
|
Detail Information |
|||
| Panel Width: | 500 Mm--1220 Mm (Accept Customized) | Material: | MDF+Aluminum |
|---|---|---|---|
| Application: | Hotel,office ,conference Room | Color: | Color Selective (Customized) |
| Thickness: | 85 Mm(3 1/4inch) | STC Conffcient: | 32/50db |
| Feature: | Voice Insulation | Finishing: | Melanimine,fabric,leather Etc. |
| Highlight: | acoustic sliding partition,sliding folding partition |
||
Product Description
Banquet Hall Artistic Fire Resistant Movable Sliding Partition Walls Price
Specification:

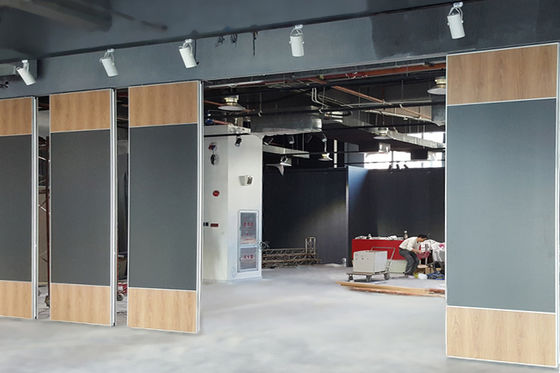

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.
Features:
1. Large selection of standard finishes
2. Retractable top and bottom seals retract for easy movement
3. Deep interlocking vertical seals prevent sound leaks and help to align the panels during set-up
4. No floor track
5. Quick sight and sound division with a simple pull-and-latch operation
Bunge Operable Wall Systems-Technical Information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Finishes:
There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white board etc.Panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
Common Applications:
Soundproof movable partitions can be used to Convention Centers, Gymnasiums, Religious Facilities, Hotel, Auditoriums, Corporate Training Facilities, Civic or Exposition Halls, Schools, Banquet Facilities etc. Soundproof movable partition systems, there are no more barriers to maximizing the potential of your available building spaces.
