Movable Restaurant Sound Proof Partitions 32 / 50db STC Conffcient
Product Details:
Place of Origin: | Guangdong |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | Series 85 mm sound proof partitions |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 squaremeters |
---|---|
Price: | 86 / 118 dollars per square meter |
Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 squaremeters per month |
Detail Information |
|||
Panel Width: | 500 Mm--1220 Mm (Accept Customized) | STC Conffcient: | 32/50db |
---|---|---|---|
Thickness: | 85 Mm(3 1/4 Inch) | Feature: | Voice Insulation |
Finishing: | Melanimine,fabric,leather Etc. | Application: | Hotel,office ,conferance Room |
Material: | MDF+Aluminum | Color: | Color Selective (Customized) |
Highlight: | sounproof folding partition,movable soundproof partition |
Product Description
Sound Proof Acoustic Movable Restaurant Partitions with Competitive Price
Specification:
1) Easy element adjustment after installation.
2) Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
3) Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
4) Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.
5) Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
Free Sample in 10 Days Inquiry now and you will have your sample in 10 day if you pay the express. | 3-year Warranty The partition wall made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years | OEM Service Your logo can be printed on the packaging carton |
The section configuration
1) feld: acoustic fleece, pasted on the back of the panel, noise reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
2) substrate(basal material): based on high quality of 12/15/18mm MDF with density of 750kg/m3,
more choices for basal material:HDF, E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
3) surface: available in three different finishes: real wood veneer, printed wood melamine finished and fireproofing surface.
Finishing
There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.
Partition door mechanism structure
Bunge Operable Wall Systems-Technical Information
Series | BG65 | BG80 / BG85 | BG100 & BG125 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Installation Method
Application:

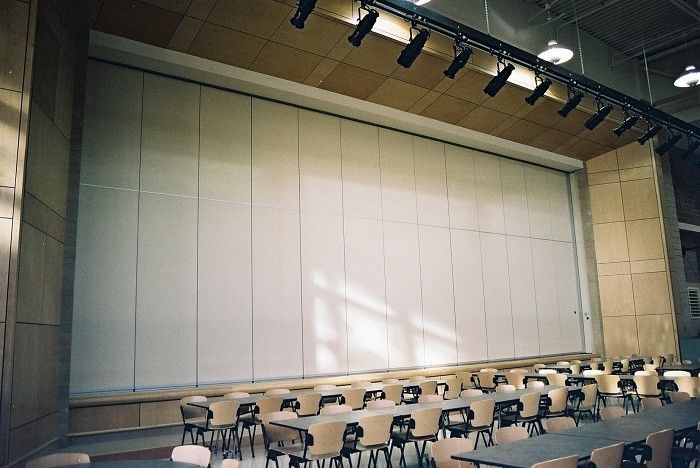

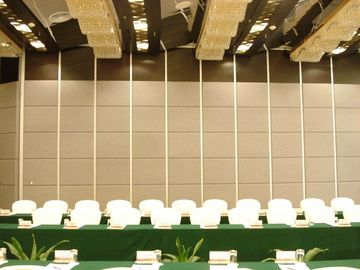

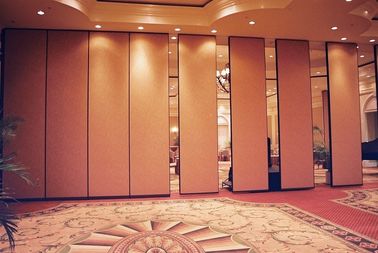

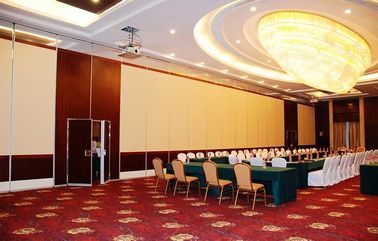

Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
