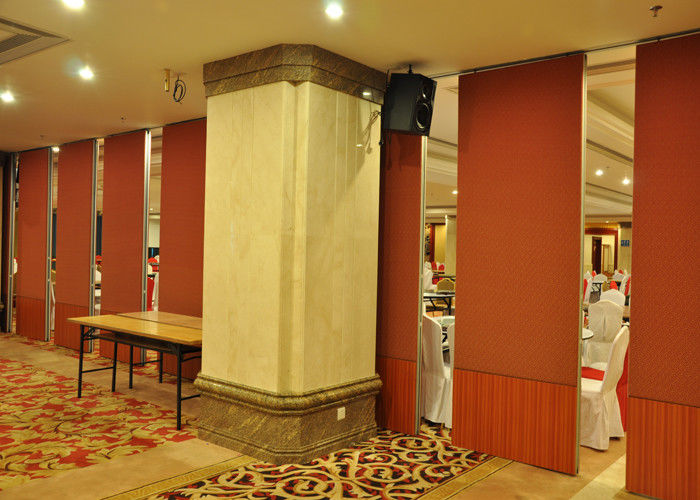

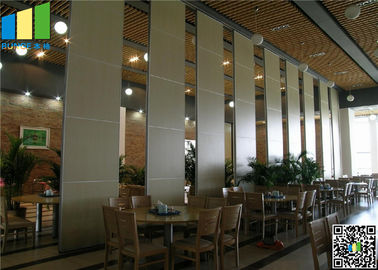

Top Hanging 65mm THK Panel Folding Internal Doors
Product Details:
Place of Origin: | China |
Brand Name: | BUNGE |
Model Number: | 65mm operable partitions |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 Square Meters |
---|---|
Price: | US $ 100 - 300 / Square Meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T |
Supply Ability: | 5,000 Square Meters per Month |
Detail Information |
|||
Material: | Aluminum | Thickness: | 65mm |
---|---|---|---|
Surface: | Melamine, MDF, Fabric, Leather | Type: | Sliding Doors |
Application: | Hotel , Hall .meeting Room And So On | Collect: | Foldable And Movable |
Highlight: | polyester fiber acoustic panel,acoustic wall panels |
Product Description
Dancing Room Movable Walls , Folding Internal Doors , 65mm Panel
Specifications:
Technical Parameter |
Panel Width |
500 - 1230mm |
Panel height |
2000 - 4000mm |
|
Sound proof |
32 - 38db |
|
Operation |
Manual |
|
Frame |
Aluminum |
|
Vertical profile |
Anodised aluminum profiles with integrated magnetic |
|
Finish options |
Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, |
|
Base options |
Plywood, Gypsum, steel, MDF |
|
Max width |
Unlimited |
|
Panel weight |
22 - 35 kg / sq |
|
Pass door selection |
door |
Single or double door |
Seals |
Top |
Manual |
bottom |
Manual |
Description :
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.
Operation :
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Panels :
The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
Basic Panels shall be equal in module.
Approx. Weight kg/ square meter : 25 kg
Maximum height : 4000mm.
Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
Seals:
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
