Function Hall Foldable Acoustic Partition Panels With Moveable Pass Door

Function Hall Foldable Acoustic Partition Panels With Moveable Pass Door

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Model 85 acoustic partition panels

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Acoustic Partition Panels Panel Thick: 85 Mm
Surface: Melamine Application: Function Hall Partition
Material: MDF + Aluminum Weight: 30 Kg/m²
High Light:

Foldable Acoustic Partition Panels

,

Moveable Acoustic Partition Panels

,

85mm Thick Acoustic Partition Panels

Product Description

Function Hall Foldable Acoustic Partition Panels With Moveable Pass Door

Function Hall Foldable Acoustic Partition Panels With Moveable Pass Door





Acoustic Partition Panels Detail



Acoustic partition panels are a hanging system, which just have the ceiling tracks, but there is no floor tracks. A system of interlocked panels, usually fully glazed, provide a closing screen or space division solution within an existing larger partition.



They are operated manually and are usually hung via head and floor tracks although head track only options are available.

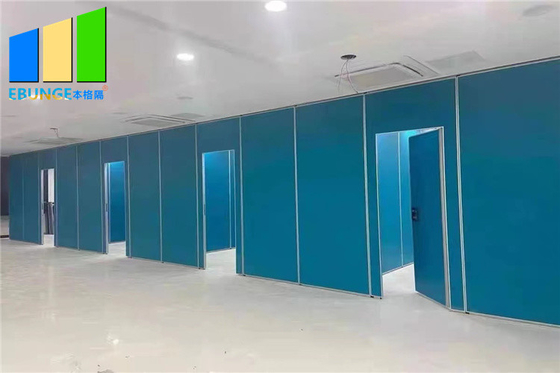

Each acoustic partition panel is joined via hidden hinges and seals providing a seamless finish once fully closed and folds away neatly when not required. A acoustic partition panel can incorporate smaller access doorsets and offer numerous panel configurations and operable actions, such as pivoting panels, which offer flexibility and convenience for users.



The vertical channel of each acoustic partition wall panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound insulation partition walls are available in three thicknesses, 65mm, 80mm and 100mm, depending on the acoustic rating (from 22dB to 55dB).



Technical Information

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

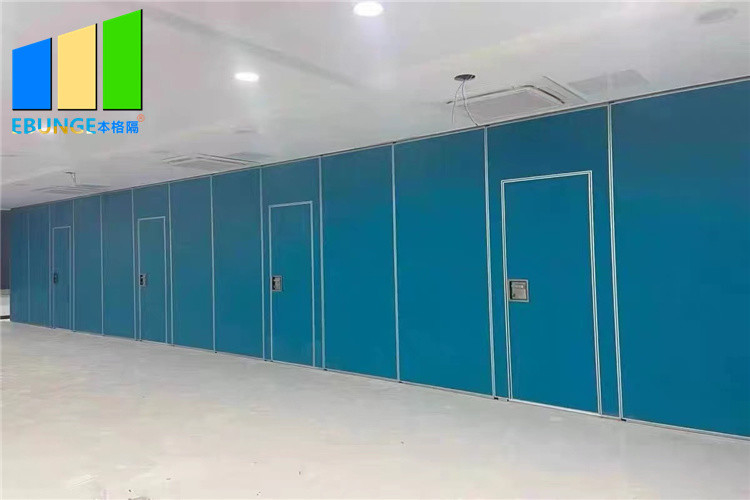

Function Hall Foldable Acoustic Partition Panels With Moveable Pass Door 0





Acoustic Partition Panels Features



With the unique multi-layer panel system, our acoustic partition panels has excellent acoustic performance with a STC up to 55dB.



Double PVC seals are mounted around the removable soundproof wall to provide the highest level of acoustic integrity. More importantly, this fit can also achieve the desired acoustic integrity between two nearby rooms.



The acoustic structure includes multi-layer board at the top and bottom of the acoustic partition panels and the glass wool inside. The fabric wrapped acoustic panel and perforated MDF panel can be used to reduce echo. The vinyl at all edges help to prolong life time and seal the noise.



These acoustic partition panels will be provided in an end-folded configuration to meet a variety of parking requirements and the first panel can be provided as a standard access door.



The acoustic partition panel has aluminum edge profile, and panels are available for a variety of surface treatments including painted, polished veneer or various standard or high pressure laminate. Fire rated finish panel is also available.
