Aluminium Frame Melamine Surface Office Sliding Partition Wall 1300mm Width Easy Installing
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 65 mm sliding partition wall|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||91 /136 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Application:||Office,conference Room||Height:||4 M|
|Material:||MDF Board+Aluminium||Thickness:||65 Mm|
|Service:||OEM Service||Open Style:||Folding|
acoustic sliding partition,
sliding folding partition
Easy Installing Aluminium Frame Melamine Surface Soundproof Material Office Sliding Partition Walls

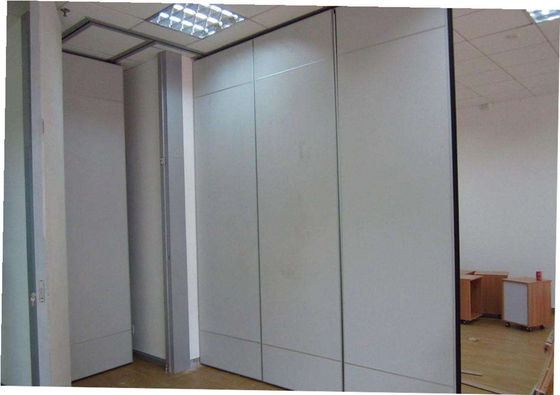

Sliding partition wall is a top hung movable acoustic wall of lighter construction made up of individual panels designed to give economical but strong and long lasting use in the division of space requiring flexibility and offers good levels of sound reduction and high quality finish.
It is ideal for use in meeting rooms, classrooms, church halls and offices. Panels can be finished in priming sheet for client decoration, standard factory finish in standard laminate or spray paint, textile coverings, full range of veneers and laminates or to suit clients requirements.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Sliding partition wall structure:
Sliding partition wall is the evolution of partition with blind panels and is a perfect acoustic room divider.
It is the answer to all the requirements of a physical, not visual, partition of the spaces and is a perfect acoustic room divider.
Thanks to its silent sliding system, to its thin structure in anodized aluminium and to the simple sliding of the seals, allows a light and transparent closure.
Each element has two sliding rubber blocks, linked to mobile seals with soft gaskets: through a pression on them , the locking mechanism start to work and allows the locking in positions of the elements.
A sliding-revolving closure panel or, in alternative, a pass door fixed to the wall can be the last element to be locked when you need to close the rooms. More, you can insert a pass door element in any point of the partition.
Individually operated, top hung panels, purpose made to suit any opening size upto 4 metres high.
Panel thickness is around 65 mm with single or double rollers.
Retractable top and bottom seals, able to deal with floor level differences up to 22.5 mm.
Mechanically operated by worm screw drive providing 2Kn of pressure for optimal acoustic performance.
No need floor track.
Curved layouts, corner panels, junction panels, glazing cutouts, matching recess doors to special order.
Suitable for internal use only with a wide variety of features and finishes.
Sliding partition wall benifits:
Hinged pair panels for quick andeasy operation.
Robust aluminum frame construction for demanding environments.
Room divider wide range of surface finishes.
Partial and fully operating panels available.
Parition divider just only top hung supported without floor track.
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
