Soundproof Movable Hotel Sliding Partition Walls Floor to Ceiling 1200mm Width
|Place of Origin:||China,Guangzhou|
|Model Number:||Series 85 mm sliding partition walls|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 square meters|
|Price:||115 /134 dollar per square meter|
|Packaging Details:||Carton package, MDF batten on four section sides ,foam board on both front face.|
|Delivery Time:||Shipped in 10 days after payment, based on the quantity.|
|Payment Terms:||D/A, D/P, L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||5000 square meters per month|
|Service:||OEM Service||Width:||500-1200 Mm|
|Thickness:||85 Mm||Color:||Multi Color|
|Height:||6 M||Application:||Banquet Hall, Hotel, Restaurant|
sliding folding partition,
sound proof sliding partitions

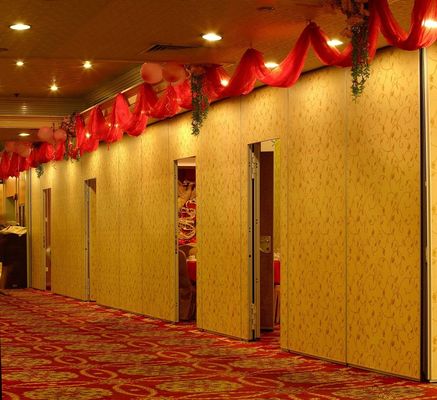

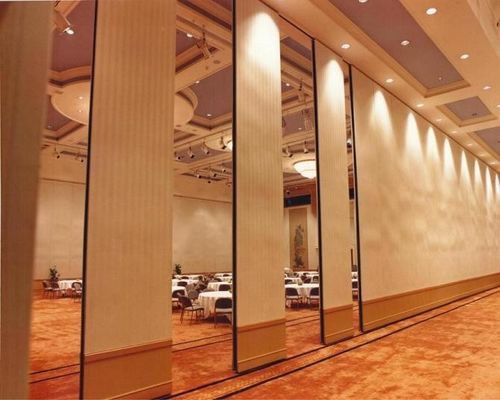

Floor to Ceiling Soundproof Movable Hotel Sliding Partition Wall
Sliding partition wall system is ideal for dividing and creating rooms.The sliding wall system can either be supported from the ceiling and is made up of wall panels that are connected by hinges and stored at the end of the track when opening the wall. There are sound insulation seals between the panels, ceiling and floor.
The operable wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85 mm and depending on the insulation material ensures a soundproof resistance of 40-49dB.
When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm. The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc.).
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Ease of operation, acoustic performance and pleasing aesthetics are combined in it to create movable walls that maximize spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels and banqueting suites.
1.Space management ~ Movable walls offer an effective space solution for many environments including offices, educational establishments, sporting facilities, dining and entertainment facilities, religious centers, or retail areas.
2.Smart use of space – Movable walls offer a flexible solution for making the most of an interior space. Room sizes can be changed in a matter of moments to capitalism on the revenue potential of commercial space or simply create the most efficient use of floor space.
3.Acoustics ~ the movable wall is the highest specification range of fully operable, individual-panel systems. Acoustic insulation of up to 53 dB noise reduction is achieved with a combination of acoustic infills and operable top and bottom seals.
4.Operation ~ space without a trace ~ when the operable seals are retracted the panels will glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide). Final closure of each panel is by a removable operating handle that extends the seal from the top and bottom of each panel forming an acoustic seal.
5.Adaptable configurations – The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
6.Panel options ~ Individual panels can be constructed with either manual retractable top and bottom seal.
Sliding partition is the evolution of operable partition with panels and is a perfect acoustic room divider.It is the answer to all the requirements of a physical, not visual, partition of the spaces and is a perfect acoustic room divider.
Thanks to its silent sliding system, to its thin structure in anodized aluminium and to the simple sliding of the seals, allows a light and transparent closure.
Each element has two sliding rubber blocks, linked to mobile seals with soft gaskets: through a pression on them , the locking mechanism start to work and allows the locking in positions of the elements.
A sliding-revolving closure panel or, in alternative, a pass door fixed to the wall can be the last element to be locked when you need to close the rooms. More, you can insert a pass door element in any point of the partition.
When the partition is closed there are no visible aluminium profiles and the continuity of the covering panels surface is granted by the perfect alignment of the elements.
A large amount of repairs are as a result of incorrect operation by users. Movable wall panels are deceptively heavy due to the ease of operation but are capable of serious crush injuries. Your work place risk assessments should have taken this into account and state that only trained and authorized personnel may operate the wall.
We will offer training on the safe and correct operation of your system to your staff.
Movable walls and sliding folding partitions do have a life cycle and there is a point where maintenance and repairs become either impossible or uneconomical.
