|Product Name:||Soundproof Partition||Material:||Aluminium Frame And Mdf Board|
|Height:||Less Then 6 M||Width:||500-1200 Mm|
|Thickness:||85mm||Function:||Space Dividing,sound Proof|
|Style:||Modern Style||Warranty:||3-5 Years|
sounproof folding partition,
movable soundproof partition

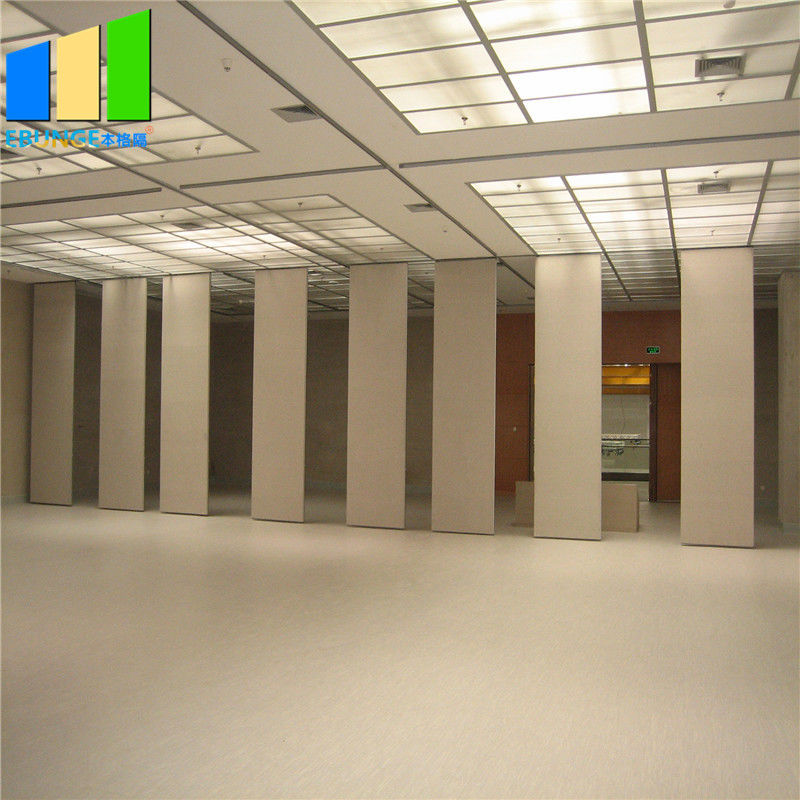

Sound proof partitions sliding aluminum frame movable partition wall malaysia type65 movable wall for hotel
The sound-proof sliding partition walls are a new way to divide spaces with elegance while respecting the architectural environment in which they are inserted. They are composed of multiple individual elements, which flow along a horizontal guide attached to the ceiling, assembled one after another completing the entire wall. It is not necessary for any guidance on the floor, handling the elements is simple, fast, and safe. The advantage of a soundproof sliding wall is essential to occupy reduced space when it is stored, and when the wall is composed of all its elements.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized)|
The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminum head track, when closed they form a securely fixed wall.
The movable wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kilograms in weight, there are multiple options for door types, parking areas, and track layouts.
Each door is a top hung straight sliding panel which sits in line with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
Sliding soundproof partition aluminum accessories:
Track: The tracks are made from extruded 6063 - T5 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. The aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23 mm.
