Office Division Sliding Foldable Conference Room Sound Proof Partitions

Office Division Sliding Foldable Conference Room Sound Proof Partitions

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: Type 85 sound proof partition

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Sound Proof Partition Application: Conference Room Partition
Finishing: Laminate Wheels Material: POM
Function: Room Division Weight: 30 Kg/m²
High Light:

6000mm Height Sound Proof Partitions

,

ISO 9001 Sound Proof Partitions

Product Description

Office Division Sliding Foldable Conference Room Sound Proof Partition



How to improve the sound insulation for the sound proof partition?



There are some factors which can improve the sound insulation effect, such as horizontal sound insulation, wall corner sound insulation, vertical sound insulation, skeleton sound insulation, material sound insulation, operation noise insulation, we can study how to improve the sound insulation effect from these technical aspects.



The conference room sound proof partitions mainly relies on the principle of horizontal sound insulation to achieve sound insulation. It uses the internal jack structure and the upper and lower two layers of sound insulation rubber strips as the sound insulation method. The two layers of rubber strips are tightly attached to the hanging rail of the ceiling and the floor to prevent the spread of sound source, and isolate the noise from the unified horizontal plane. As for the corner sound insulation, it is a special rubber wall component transformed by some special production processes to deal with the sealing problem of the wall corner gap. Generally, dealing with the sound insulation effect of the wall corner may involve technical problems. To solve the problem of sound information leakage from the root, we have achieved our own superior stability and sound insulation.



The combination of glass wool and decorative materials surface with sound insulation effect can greatly improve the sound insulation coefficient of partition. Solve the noise of the operation part: the upper partition page has a twist hand hole and a special manual control torsion handle, which can freely control the sound bead and the retractable bead, and the diamond bayonet connection of the inner crank involves the realization of flexible extensibility and easy crank sliding. The noise generated during the operation of movable partition is greatly reduced.

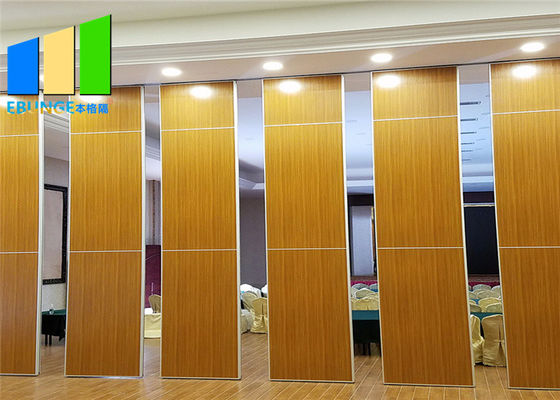

Office Division Sliding Foldable Conference Room Sound Proof Partitions 0





Technical Information




Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)





Sound proof partition features



The conference room sound proof partitions are supported from the ceiling track, so there is no floor track to get in the way, no tripping hazard, and no gap to collect debris. When an acoustic bottom seal is required, the seal is activated from within the operable panel.



Aesthetics is vital and we offer a wide range of surface and construction options for conference room sound proof partition to meet any project design and functional standards. Surface treatment options include vinyl, fabric, carpet, veneer, high pressure laminates, frescoes and other custom surfaces – MDF finish can allow customers do surface treatment on site.



The conference room sound proof partition is made of aluminum frame with excellent durability and rigidity in a wide range of challenging applications. From 2m to 15m high, 4 different thickness of aluminum frames to make sure the durable, safety and reliable operation.



Melamine laminates provide innovative, durable, high-quality finish for your conference room sound proof partition. With more than 200 complete options, including wood grain, pure color, etc. You will surely find the perfect look for your sound proof partitions.
