Fashion Movable Partition Walls Dividing Folding Door Sliding Dividers Melamine Wooden Partition For Conference Center
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 85 mm Movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | 60-159 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | T/T |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 6 M | Width: | 500-1200 Mm |
| Thickness: | 85mm | Function: | Space Dividing,sound Proof |
| Style: | Modern Style | Warranty: | 3-5 Years |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

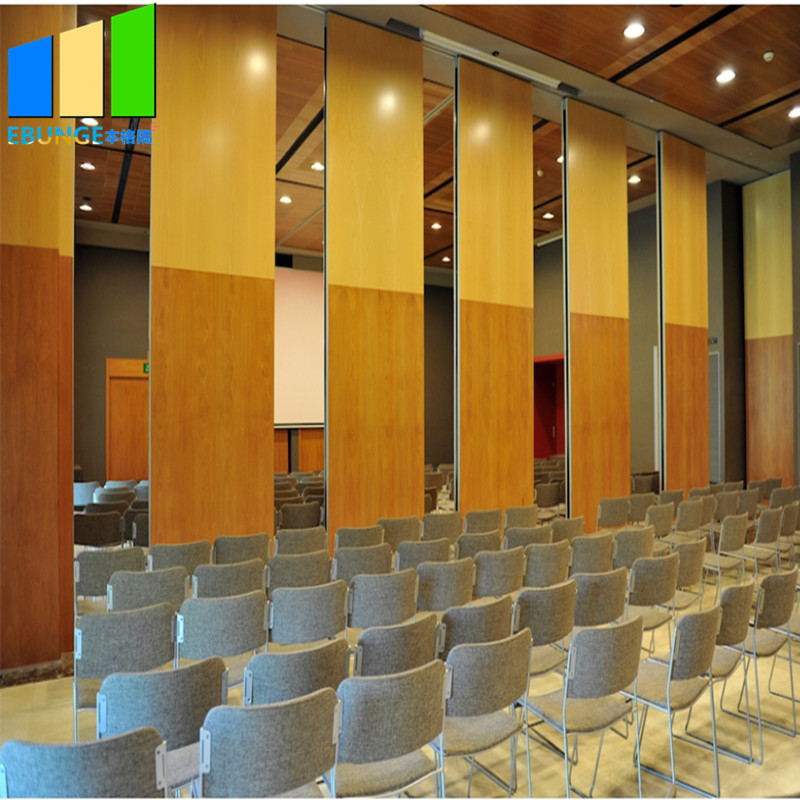

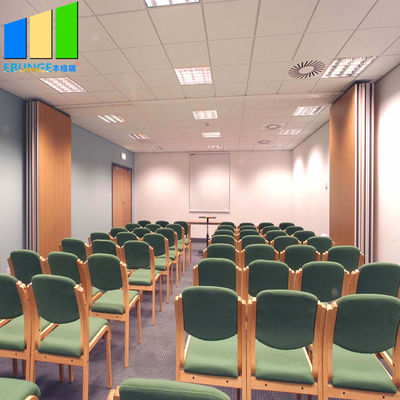

Movable partition walls dividing folding door sliding dividers melamine wooden partition for conference center
Description:
BUNGE satisfies the most stringent requirements a user may demand from a movable wall.
Movable Wall has excellent acoustical properties. When it comes to sound insulation this Movable Acoustic Wall is the obvious choice, its sound insulation ranges from 32-53 decibels.
The Movable Wall Panels runs smoothly along its tracks on ball-bearing trolley and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.
It can benefit from a specially made steel self-supporting frame structure of which can achieve heights of more than 15 meters. Operated by a specialist scissor jack mechanism that ensures the greatest possible stability and the highest degree of soundproofing.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized) | ||
Application:
Ease of operation, acoustic performance, and pleasing aesthetics are combined in it to create movable walls that maximize spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels, and banqueting suites.
Feature:
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
4.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
5. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect;
6. Retractable and flexible: The partitions move freely, promote flexibility, and one person can complete the entire process of partitioning;
7. Convenient collection: when closing, the partition can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.
