Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Model Number: 65 mm Movable Partition Walls

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: Negotiable
Packaging Details: Carton packing ,MDF all around the corner
Delivery Time: 30 day
Payment Terms: MoneyGram, Western Union, T/T, D/P, D/A, L/C
Supply Ability: 10000 square meter
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Walls Material: Customized
Warranty: 3-5 Years Style: Simple & Modern
Service: ODM OEM Max Height: 4000 MM
Color: Customized Package: Standard Wooden Case
Width: 500 - 1230 MM
High Light:

movable walls on wheels

,

movable partitions systems

Product Description

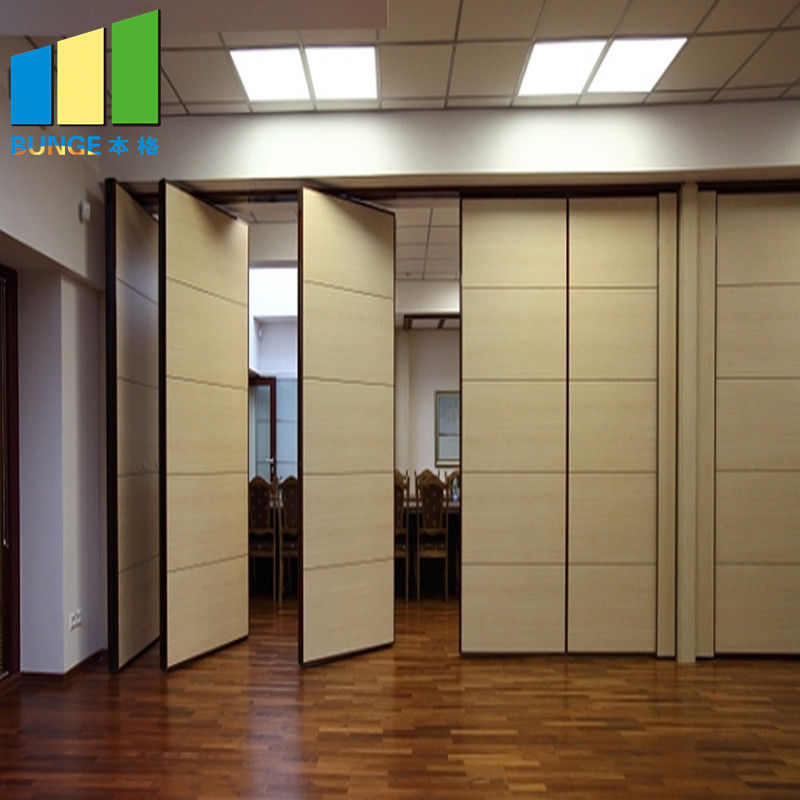

Soundproof Hotel Dinning Hall Operable Wall Movable Panel Partition

Product description:

BUNGE movable wall partition wall is a movable soundproof room partition system which forms a removable wall. The movable wall partitions are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, movable partition wall has excellent soundproofing performance and operation easily.



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Soundproof Hotel Dinning Hall Operable Wall Movable Panel Partition 0



1. System.



The mobile foldable wall partition is a hanging system, which have the ceiling tracks, but have no floor tracks. It means that there is nothing on the floor, so it will not damage the carpet and floor at site. And they are sliding, folding and movable.



2. Size Customized.



Mobile foldable wall partition is a whole customized product. We can produce the mobile foldable wall partitions based on the different demands of different client, including the size, the colors and the finishes. The normal thickness is 65, 85 and 100 mm thick, the maximum thickness is 130 mm. The width is available between 800-1220 mm and the maximum height can up to 17 meters.



3. Different Surfaces Available

There are several surfaces for client to choose. Such as:

MDF or Plywood(this is a raw finish, the client can paint or put the wallpaper on the panels).

Melamine or laminate(this is the most popular surface for clients, because it is most economical, there are more than 60 colors to choose and very easy to maintain).

Fabric or Leather(soft cover and hard cover also available, of course it will be sound proofing than other surfaces).

Glass or mirror(very popular in dancing room and music school).

Acoustic panels(such as the polyester acoustic panels, wooden grooved acoustic panels and wooden perforated acoustic panels).

Landscape painting PU leather(the client can choose the most favorite picture or drawing, then we can print and put it on the panels as surfaces.)



4. Soundproofing.



Mobile foldable wall partition is a sealing system, there are some specific sections(“M”&“W”sections) between the partition walls panels. The pressure seals are extended and retracted by a single 180°turn of a removable operating handle. Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals. So there is no gap between the panels. In addition, inside is full of sound proof cottons. So it can achieve an excellent sound proofing performance.



5. Easy operation.



The mobile foldable wall partition is movable and sliding. When you use them, they can help you divide a big space into 2 or more smaller rooms. And when you do not use them, they can be park to the parking zone. 1 person can finish the whole operation.



6. Application.



Nowadays the mobile foldable wall partitions are more and more popular for the clients. They are widely used in hotel banquet hall, office conference hall, meeting room, classroom, function hall, ballroom, gym, exhibition hall and many other public places.



Soundproof Hotel Dinning Hall Operable Wall Movable Panel Partition 1



FAQ

1: What you should you do on site?

A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.



2: How to install?

We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.



3: What is lead time?

The lead time is 7 days to 10days.



4: How to transport?

Sea transport is a common mode of transportation.In an emergency,can be air freight .



5: How do the goods packing?

Carton paper package ,MDF batten cover all around cotner.



6: What is procurement procedure?

Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)

Secondly, we offer you the movable wall layout drawings for your confirmation.

Thirdly, we quote the movable wall in acordance with confirmed drawings.
