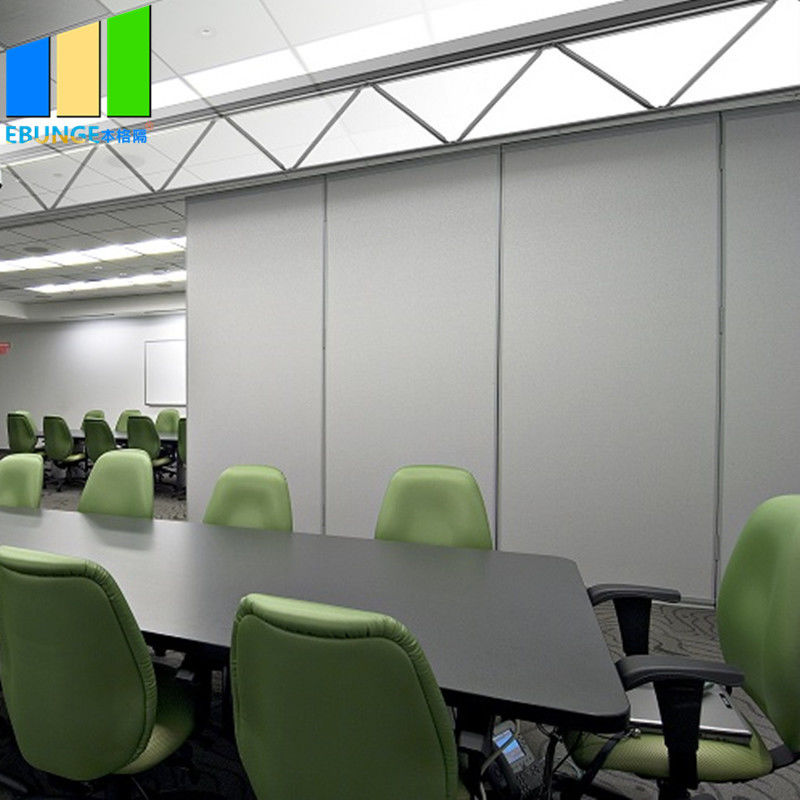

Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm sound proof partitions wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-119 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partitions Wall | Material: | Aluminium And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm Aluminum Frame | Function: | Sliding Room Divider |
| Finish: | Melamine, Fabric, Leather, MDF Bare Finish | Warranty: | Sound Proof Partitions Wall Warranty 3-5 Years |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description
Sound proof partitions system acoustic partition panels soundproofing sliding partition wall for meeting room
Description:
The movable partition walls we supply and install here can allow 2 rooms to become one large area.
Easy to operate, with manual operation available if you prefer, the walls can provide impressive sound reduction between rooms, yet open quickly to open up the space.
Walls can be top hung to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.
A range of panel finishes allows you to be sympathetic to your surroundings, from melamine, acoustic fabric, acoustic leather wall panels.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Track system installation :
1. As shown on the drawing, check the track that the track parts are assembled on the floor before installation.
2. Mark the track line and place the bracket in a specific position.
3. Mount the rail brackets to the ceiling.
4. Check if the mobile partition is rigidly fixed on the track. When the rails and brackets must be loosely stored in the storage area, so that the bracket plate can be moved to other places.
5. At the end, measure the proper location of the storage track before adjusting the main track facility. This is very important for the intersection placement.
Feature:
Sound reduction from 37– 53dB RW.
Integral pass doors available.
Selection of stacking options.
Vision panels can be incorporated in solid variations.
Head or floor supported options.
Frame less glass option.
Available in a diverse range of real wood veneers, laminates melamine and vinyls.
