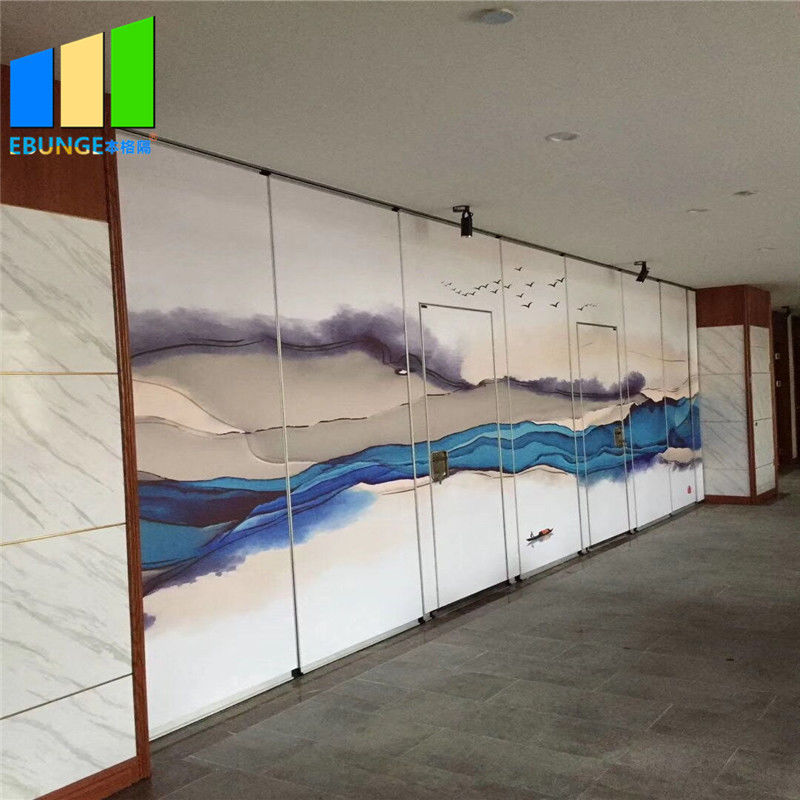

Aluminum Frame Movable Partition Walls Room Divider With Painting
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | EBUNGE |
| Model Number: | Series 65 mm movable partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 60-101 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 4 M | Width: | 500-1200 Mm |
| Thickness: | 65mm | Function: | Space Divide,sound Proof |
| Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
Manufacturer wood folding partition walls room divider with aluminum frame
Description:
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
The movable sound proof partition wall is a kind of room divider which can divide a large space into small space or join up small space and make a larger space when needed.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Folding Partition Wall
folding partition are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximise space utilisation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centres,banks and restaurants.
FAQ
Q: What is the price for movable wall?
A: Our movable wall system is customized and the cost is caculated by total square meter.Different types have different prices.So
we need you provide to us detailed dimensions like height by width,finish options,parking options to get a quote.We also need your
layout drawing if possible.
Q: Is the movable partition wall acoustic (soundproof)?
A: Yes, our movable wall ystem is soundproof.We have different acoustic materials infill to reach different acoustic rating. And
we are the only one factory who has passed ASTM acoustic test in HongKong and get acoustic Test report.For type 65 series we can
reach 45db,for type 85 we can reach 48db,for type 100 we can reach 50db.
Q: What finish options you have for partition?
A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply
melamine laminate,high pressure laminate, wood veneer,fabric,PU and soon.It dependson your requirement.
Q: Are you a manufacturer or trading company?
A: We are movable wall partition manufacturer in Guangzhou city.We have worked for this business over 10 years. Our
factory is located in Guangzhou,China.You are warm welcome to visit us!
Q: How to install the partition? Will it difiult to be done?
A: It is not difucult to installe our partitions.Our partitions are top supported system without any floor track inneed.So top
structure will be very important.We have very detailed drawings and videos showing how toinstall,so your people just need to
follow them step by step.
Q: Can you send engineer to install? What will the cost be?
A: Sure.We will send one engineer assupervisor.He will instruct your workers to do the job but won't do the installation by himself.
Q: Are your products guranteed?
A: Yes,all of our products carry a full 3 Year gurantee,coverig all parts and defects.We can also providean extended arrantee if
require and the products are expected to last a lifetime.
