Folding Wooden Operable Partition Wall Sound Proof Partition Door For Restaurant
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm soundproof partition door |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partition Door | Thickness: | 65 Mm |
|---|---|---|---|
| Application: | Restaurant Partition Walls | Weight: | 25-35 KG |
| Width: | 800 - 1220 Mm | Production Time: | 10 - 20 Days |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description

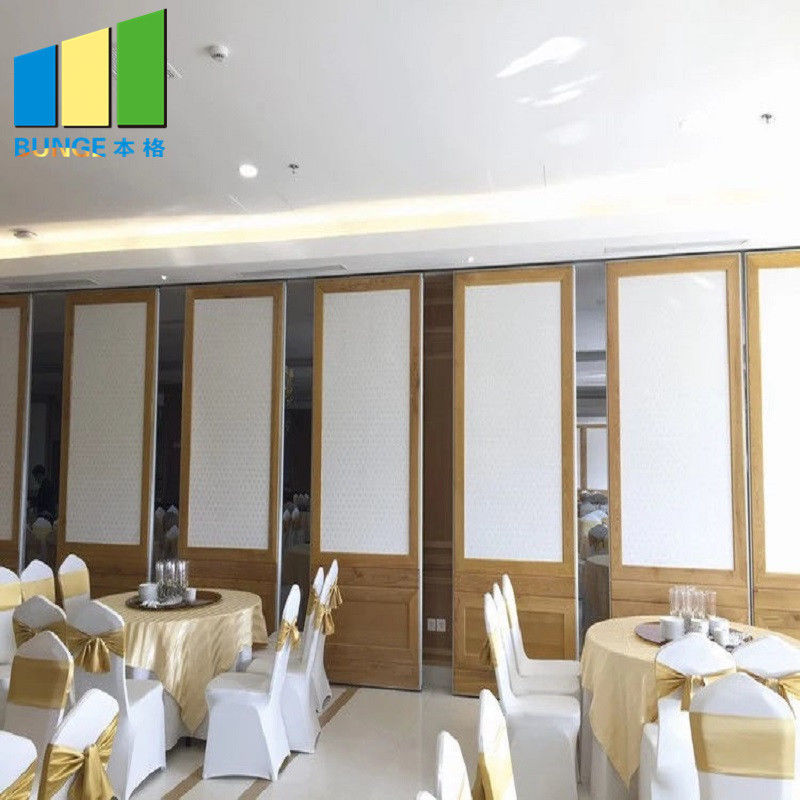

Folding Wooden Operable Partition Wall Sound Proof Partition Door for Restaurant
Soundproof partition door details
1. We are the sound proof partition doors supplier from China,we are the 100％ real manufacturer,we have our own factory and showroom.Our factory located in Guangzhou,China.Very welcome to visit us.
2. About the sound proof partition door,they are acoustic,folding and movable.When you use them,they can be divided a big space into many small rooms,and when you do not use them,they can be parked at one site.
3. The sound proof partition doors are a hanging system,just have the ceiling rails,but has no rails on the floor. So the sound proof partition door will not damage your floor or carpet.Please do not worry,they are easy to install.Before we deliver the partitions,we will mark them one by one,and we will send you the installation drawing.
4. All of the sound proof partition door can be customized,including the size,colors and the finishes.I think it is a good choice for your interior building.So if you have any requirements,please do not hesitate to contact us.
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Sound proof partition door features
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB;
4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: the use of high-efficiency fireproof materials, good fireproof performance.
