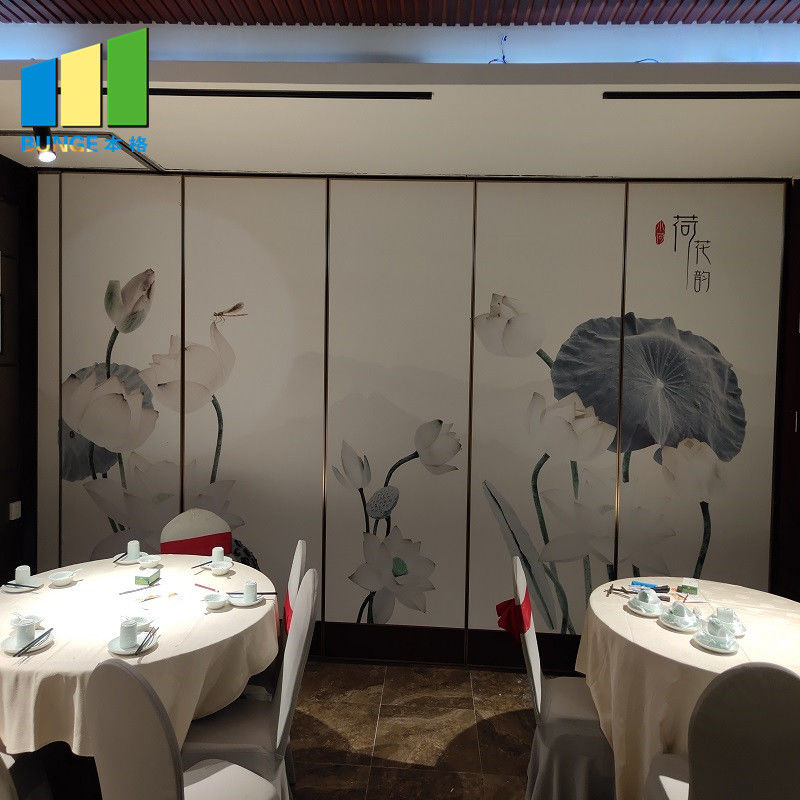

Aluminum Frame Hotel Movable Sound Proof Partition Walls For Banquet Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sound proof partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Sound Proof Partition | Thickness: | 65 Mm |
|---|---|---|---|
| Application: | Banquet Hall Partition | Weight: | 25-35 KG |
| Width: | 800 - 1220 Mm | Production Time: | 10 - 20 Days |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description
Banquet Hall Aluminum Frame Hotel Movable Sound Proof Partition Wall Installation
How to order the movable sound proof partition
Step 1: Send an inquiry to us.
Step 2: Send detailed project drawings or dimensions to us.
Step 3: We provide the solution and quotation.
Step 4: Negotiation and details discussion.
Step 5: Place order and arrange deposit.
Step 6: Make detailed shop drawing for approval before production.
Step 7: Arrange production after the shop drawing confirmed.
Step 8: Quality control and Inspection.(Production pictures will be provided for checking).
Step 9: Arrange balance.
Step 10:Arrange shipping after received the balance.
Step 11:Provide shop drawing for installation.
Step 12: After sales
| Technical Information | |||
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Movable sound proof partition details
Movable sound proof partition has good sound absorbing effect and fireproof effect. It can be used in different occasions. It can be used in the meeting of the company. It is very effective to use the movable partition in some densely populated restaurants. The surface of the folding partition wall is very Smooth, it is very convenient to wipe when needed.
Movable sound proof partitions belongs to the products in the partition series, and is widely used in high-end places such as hotels, hotels, schools, business clubs, exhibition centers, etc. Therefore, the beauty and quality of the screens of the activities are the first choice for VIP customers, and the planning of the scheme should pay more attention to the overall situation. The overall look is more atmospheric and luxurious. We pay more attention to customer perception, fully consider customer needs, and provide you with a more perfect experience.
The movable sound proof partitions are a new way to divide spaces with elegance, while respecting the architectural environment in which they are inserted. They are composed of multiple individual elements, which flow along a horizontal guide attached to the ceiling, assembled one after another completing the entire wall.
It is not necessary any guidance on the floor, handling the elements is simple, fast and safe. The advantage of movable sound proof partitions is essentially to occupy reduced space when it is stored, and when the wall is composed of all its elements.
