Acoustic Wooden Movable Operable Folding Partition Wall For Banquet Hall
Product Details:
Place of Origin: | China |
Brand Name: | Bunge |
Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Square Meters |
---|---|
Price: | USD 75-95/ Square Meter |
Packaging Details: | Carton package , Paper package |
Delivery Time: | 10 working days after received your down payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 5,000 Square Meters per Month |
Detail Information |
|||
Product Name: | Movable Partition Wall | Surface: | Melamine,mdf,fabric,leather |
---|---|---|---|
Style: | Decoration Building Material | Service: | OEM ODM |
Material: | Wooden | Drawing: | Free |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

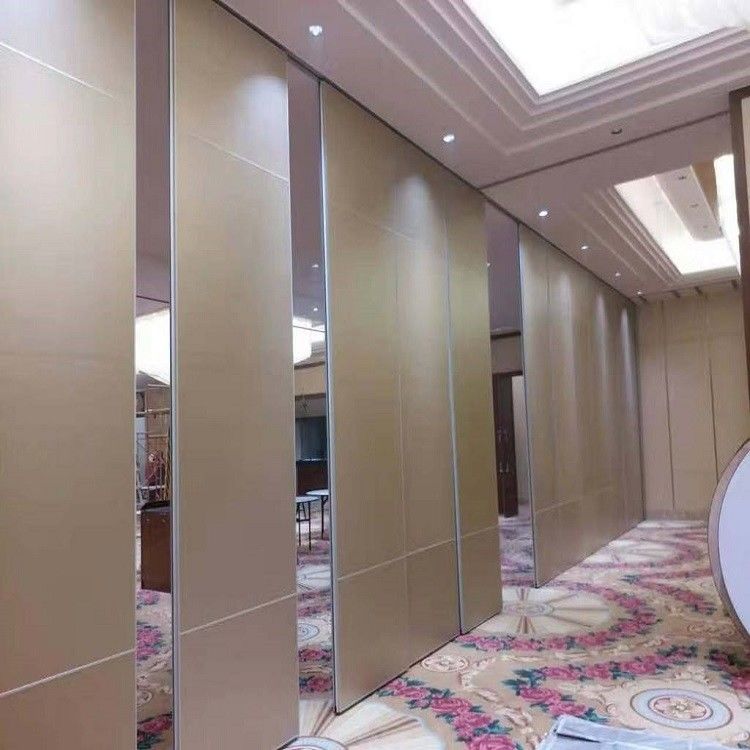

Acoustic Wooden Movable Operable Folding Partition Wall for Banquet Hall
The room partition wall normally consists of end panel with bulb seal,basic panel and close panel with telescopic sleeve.All panel is top hung with the track on floor.The panel is moving through the roller on track smoothly, when positioned,top&bottom retractable pressure seal can be extended by waist-high removable operating handle form a acoustic integrity wall.It is used in the area like multi-function hall,Conference Hall,Meeting Room,Hotel,Call Center and Exhibition Hall,Etc.
We offer:
- A full professional pre-sale and after -sale consultation
- Survey and installation guide
- Using top quality materials and components
- A fully experienced work team
- Maintenance contracts- to ensure your valuable asset remains in full work order
Technical Details
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65mm | 85mm | 100mm |
Max height | 4000mm | 6000mm | 8000mm |
Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
Face material | 9mm | 9mm | 12 mm |
Passdoors | Single door or Double door | ||
Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) |
FAQ
1. How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,85type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
65type-- Max height 3.5m
80type- Max height:5.5m
100type--- Max height:7m
125ultra-height---Max height:17m
2. What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
3. How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
4. What is lead time?
The lead time is 7 days to 10 days.
5. How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
6. How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
7. What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
8. What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
