Melamine Surface Floor To Ceiling Hanging System Restaurant Movable Partition Walls
Product Details:
Place of Origin: | China,Guangzhou |
Brand Name: | BUNGE |
Certification: | ISO9001 |
Model Number: | Series 65 mm movable partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | 82 / 138 dollar per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Detail Information |
|||
Door Material: | Aluminium Alloy And MDF Board | Finished: | Melamine,fabric, Leather |
---|---|---|---|
Function: | Divide Space | Thickness: | 65 Mm |
Height: | Less Than 4 M | Application: | Conference Room,classroom,office |
Service: | OEM Service | Color: | Multi Color |
High Light: | movable walls on wheels,acoustic movable walls |
Product Description

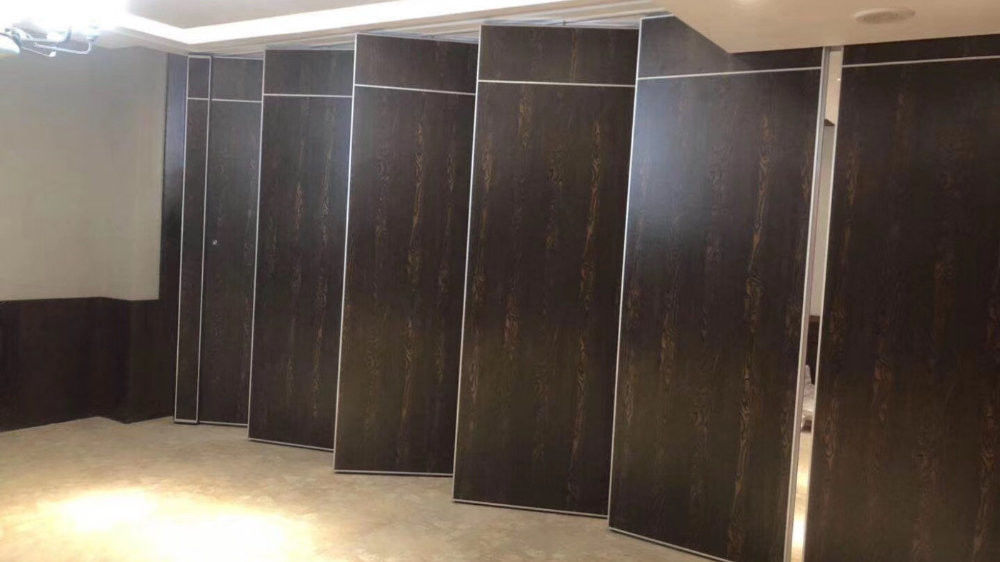

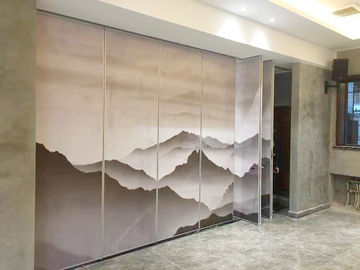

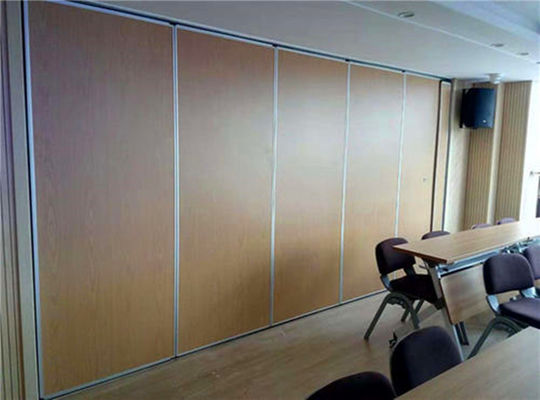

Melamine Surface Floor to Ceiling Hanging System Restaurant Movable Partition Wall
Specification:
Movable partition wall is also called soundproof partition, removable partition, and track partition. The mobile partition has the characteristics of easy installation, reliability, industrial production, fire prevention and environmental protection.
Movable partitions bring great convenience to people's work. For example, the active screen, you can fold it aside when you need it, so that the two spaces are temporarily joined together to make it bigger and convenient for temporary departmental meetings. These products use a ceiling track system that is as strong as a wall.
Feature:
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;
4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
Advantage:
Hinged pair panels for quick and easy operation.
Robust aluminum frame construction for demanding environments.
Room divider wide range of surface finishes.
Partial and fully operating panels available.
Partition divider just only top hung supported without floor track.
Main material:
Movable partition paint-free decorative material has a natural texture, clear wood grain, and can be compared with logs. There are all kinds of wood species popular in the world, and there is no color difference on the surface of the product.
The product design is elaborate, the color matching is reasonable, the construction is convenient, and the saw is good.
Cut, never rupture, repair and trim, use paint-free line matching, glue with glue, no need to worry about ash after nailing, and no need to paint, can save labor and paint fee after construction, avoid paint on the human body Unhealthy odor and carcinogens not only save a long-term maintenance and care costs, but also shorten the construction time, the effect is elegant, the cost is reduced, so it is green, non-toxic, tasteless, pollution-free cross-century new generation of paint-free decoration Materials, products lead the new trend of decorative materials with their benefits.
The movable partition paint-free plate is one of the decorative plates. It has the characteristics of washing, abrasion resistance, moisture resistance, etc. and is economical. It is a good helper for modern decoration partitions.
Technical information:
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Track system:
1. As shown on the drawing, check the track that the track parts are assembled on the floor before installation.
2. Mark the track line and place the bracket in a specific position.
3. Mount the rail brackets to the ceiling.
4. Check if the mobile partition is rigidly fixed on the track. When the rails and brackets must be loosely stored in the storage area, so that the bracket plate can be moved to other places.
5. At the end, measure the proper location of the storage track before adjusting the main track facility. This is very important for the intersection placement.
