Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm sound proof partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partitions | Application: | Banquet Room Partitions |
|---|---|---|---|
| Style: | Folding | Sample: | Free |
| Color: | Optional | Feature: | Sound Proof |
| High Light: | sounproof folding partition,movable sound proof partitions |
||
Product Description
Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

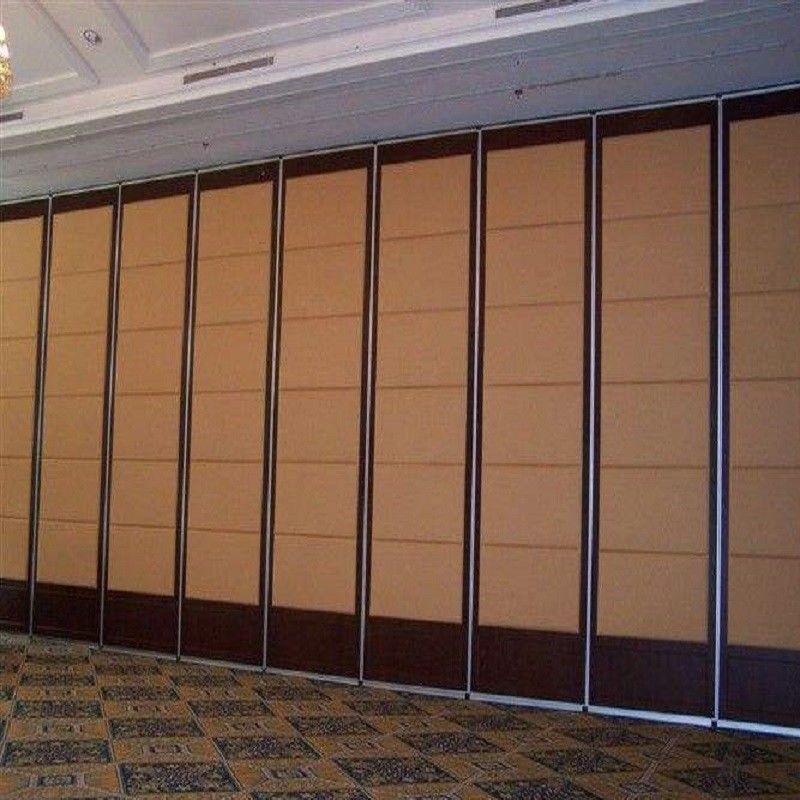

Finished project
Thanks for the trust from a Chichago Client. This project finished in April.
Application: Hotel banquet hall
Surface: Melamine + Fabric(Hard Cover)
Height: 3886 mm
Width: 21665 mm
Total amount: 84.2 square meters.
Sound proof partitions details
The sound proof partitions series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in sound proof partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.
The vertical channel of each sound proof partitions panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound proof partition walls are available in three thicknesses, 65mm, 85mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).
Sound proof partition wall is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas, etc. can all benefit from the flexibility of partition wall sound insulation system.
When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.
For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.
Technical information
| Model | BG65 | BG85 | BG100 | Ultra-high System |
| Suspension System | Hanging System, with ceiling rails | |||
| Basic Thickness | 65mm | 85mm | 100mm | 100 mm |
| Max Height | Max 3800 mm | Max 6000 mm | Max 8000 mm | Max 15000 mm |
| Width | 800 -1230mm | |||
| Floor/ceiling Sealing strength | Telescopic aluminum tube with rubber strip | |||
Side Walls Sealing | Double seal tape | |||
| Base Board Thickness | 9 mm | 9 mm | 12 mm | 12 mm |
| Vertical Profiles | Aluminum anodised with sealing profiles | |||
| Retractable Seals | Aluminum black with double rubber seals | |||
| Operation | Manual System, with supplied operating handle | |||
| Pass Doors | Single or Double Pass Through Door Available | |||
| Weight | Approx 22-35 kg/m² | Approx 25-40 kg/m² | Approx30-48 kg/m² | Approx38-68 kg/m² |
| Finish Options | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | |||
