Art Gallery Movable Wall Dividers Aluminium Partitioning System Mount Price Philippines
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 85 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Surface: | MDF,MEelamine |
|---|---|---|---|
| Thickness: | 85 Mm | Application: | Art Gallery |
| Drawing: | Free | Characteristics: | Movable Sliding |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

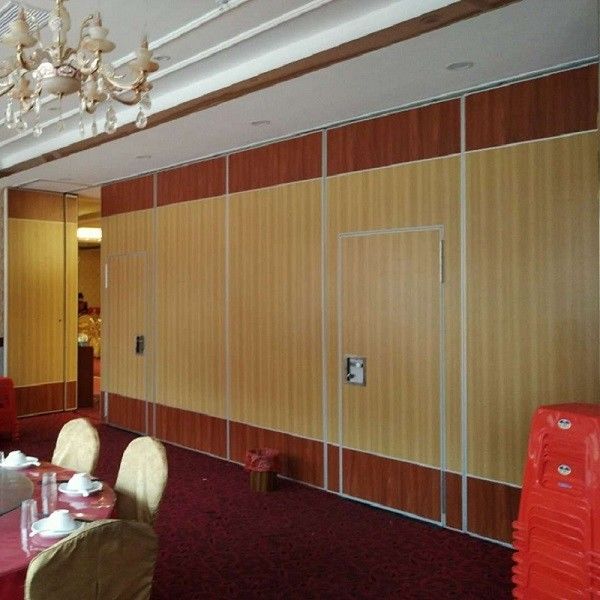

Art Gallery Movable Wall Dividers Aluminium Partitioning System Mount Price Philippines
BUNGE Movable Wall description:
The movable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )
Usage:
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Specifications
1)Folding sliding operable office partition wall interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2)To ensure folding sliding operable office partition wall additional friction connection, shall be integrated with magnetic strip.
3)Folding sliding operable office partition wall is easy element adjustment after installation.
4)Folding sliding operable office partition wall track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
We Offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
