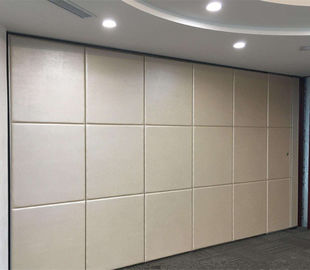

Mobile Acoustic Restaurant Partition Wall With Fabric Wrap MDF Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 100 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Surface: | MDF |
|---|---|---|---|
| Appliocation: | Hotel School University | Place Of Origin: | China(mainland) |
| Advantage: | Customized,movable | Drawing: | Free |
| Sample: | Free | ||
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Hotel Folding Mobile Acoustic Soundproofing Restaurant Movable Wall With Fabric Wrap
BUNGE Movable Wall Description
Assuming that you have determined the need for flexible space division using conventional solid panel partition systems, it is advisable that you contact a professional sales consultant from BUNGE to advise what product would be best for you. Three options will be discussed based on 3 basic criteria:
· Acoustic needs – the primary selection criteria.
· Configuration which is determined by the application and storage.
· Operation: manual
Manual Paired Panel Systems: Panels hinged together in groups of two
· Quick easy setup. Very smooth operation.
· No extra storage track. Minimum amount of structural support required.
· Straight line system
· Varied types of acoustic seals available
· Designed for frequent use by trained but “unskilled” operators.
· Panels can be stored at one end or both, in pockets or in the room.
· Typically used in classrooms, meeting rooms, areas where fast easy set-up is needed.
· Most economical of all configurations.
· All accessories & finishes available
66% of all BUNGE openings are paired panel configurations.
Single Panel Systems:
panels each with 2 trollies that are manually moved independently of each other.
· Typically used in complex layouts with special storage needs.
· Can have alternate locations using special stacking and switching.
· Satisfies need in buildings with high ceilings such as convention or conference centers, hotel ballrooms, multi-purpose facilities.
· Used in wide openings where varied floor levels and deflection requirements may be encountered.
· Requires extra storage track and support steel.
· Varied types of acoustic seals, finishes and accessories available.
24% of all BUNGE openings are Single Panel configurations.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Advantages of moving walls
1: No floor track
Need not laid ground course, do not destroy whole to decorate the effect
2: Stable and firm
Each partition can be fixed independently, stable and reliable, not easy to swing
3: Sound insulation and environmental protection
Sound insulation effect is good, sound insulation coefficient can reach 50 db above
4: Heat insulation and energy saving
Excellent heat insulation performance, different seating rate pattern, the large space divided into small space
5: Efficient fire prevention
Adopt efficient fireproof material, good fireproof performance
6: Convenient collection
Close board when, partition wall can be concealed in special store ark, do not affect integral and beautiful
Ceilng track system,no floor track:

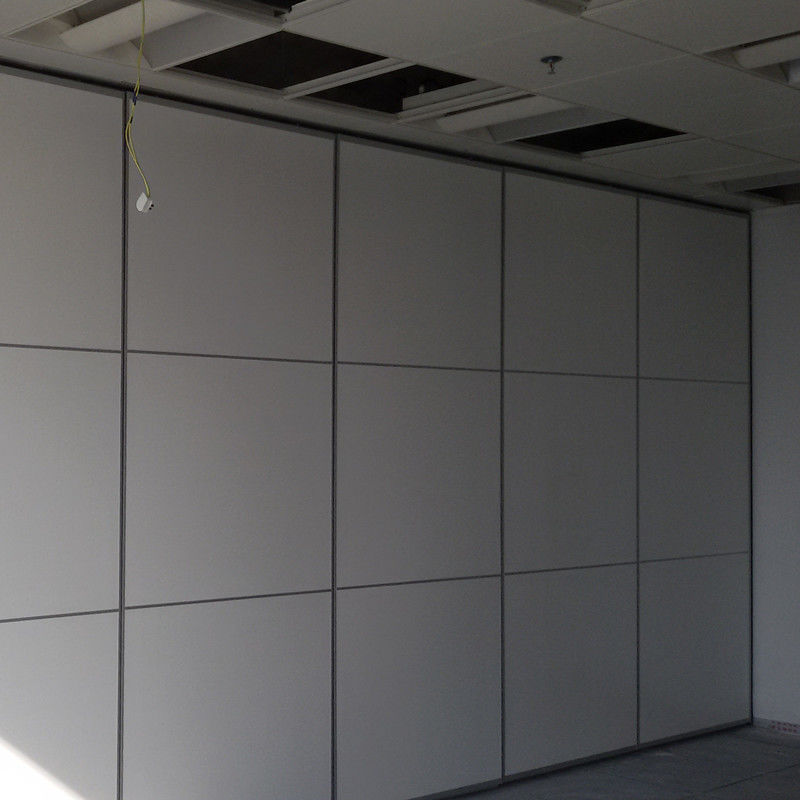

Single panel partition wall :
Double partition wall show:
