MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size

China MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size supplier
MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size supplier MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size supplier MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size supplier MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size supplier MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size supplier

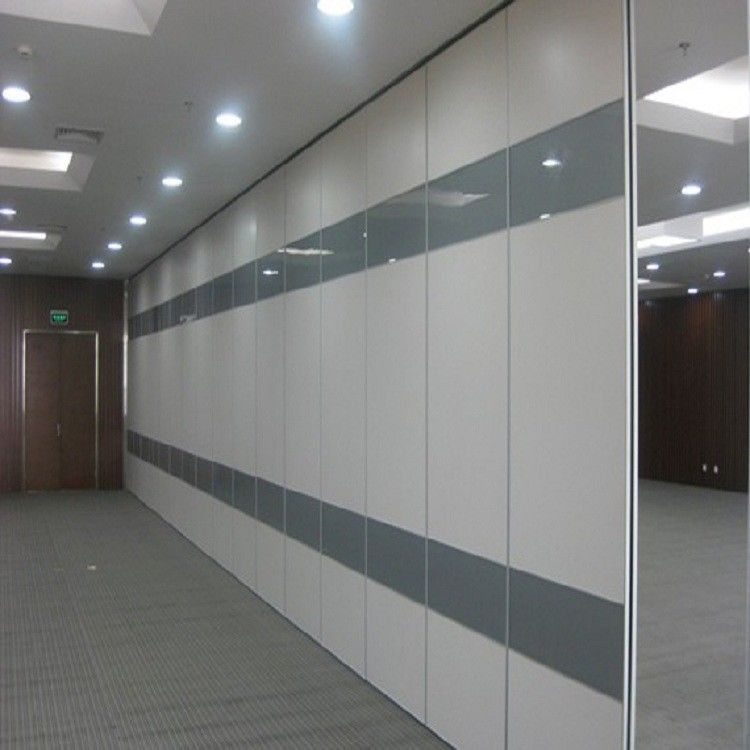

Large Image :  MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size

Product Details:

Place of Origin: Guangdong ,China
Brand Name: BUNGE
Model Number: 65 SERIES

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: USD 80-90 Square meters
Packaging Details: Partition board paper packaging, and finally packed in wooden frame
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square meters per month
Contact Now
Detailed Product Description
General Use: Soundproof Partition Walls Are Used For Interior Decoration Type: Folding Partition
Material: MDF,Aluminium Color: Customized
Size: Customized Thickness: 100mm
Application: Commercial Building And Residential House Style: Modern
Height: Max 8000mm Width: 750~~1200mm
Feature: Space Saving

Soundproof Sliding Movable Walls For Auditorium meeting room With Aluminum Frame MDF Finish



Series BG 65 BG 85 BG100
Panel supension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 400 mm 600 mm 800 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Face material 9 mm 9 mm 9 mm
Pass doors Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)



MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size



Partitions wall details



Frame: the frame material of the mobile screen is made of 6063-t6 aluminum alloy oxide material.



Rail: same as the frame, 6063-t6 aluminum oxide material, bearing capacity limit of 625kg.



Hanging wheel: movable screen roller material is PA, can make any Angle rotation in the horizontal plane, can slide through the rail L, T, X intersection.



Layering: the material is anodized aluminum, sealed screen and ground, ceiling this gap, sound insulation and fixed screen.



Sealing tape: material is PVC+ polyethylene, tensile strength 8.15mpa, shore A hardness 65+MPA, tear strength 30KN/M, the surface color is black, sealing head, sealing light, and contact wall buffer effect.



Telescopic mechanism: standard 45 steel and spring steel, pressure spring operation, can automatically adjust the gap between the screen and the ground.



Telescopic range: telescopic range of movable screen telescopic plate is 100mm



Weight: 41kg-50kg/m2 (depending on the decoration surface, the weight of each unit is different).



Sound insulation coefficient: 43db-53db



Telescopic range: telescopic range of movable screen telescopic plate is 100mm



Single height of movable screen: 2000-15000mm



Width of movable screen unit: 900-1200mm



Single thickness of movable screen: 65mm 85mm 100mm 125mm



MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size

Partitions wall finish



The decorative surface with general partition screen has: board of medium fibre, 3 get together cyanamide board, plywood, fire prevention board, wall paper, cloth is soft bag, leather is soft bag, cloth is hard bag, leather is hard bag, glass, mu PI is etc., design diversity, style each different, the setting demand that can satisfy different situation.



MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size



Application



The partition screen is widely used in hotels, hotels, banquet halls, restaurant boxes, training rooms, teaching rooms, offices, meeting rooms, office buildings, living rooms



MDF Finish Sliding Wall Partitions For Auditorium Meeting Room Customized Size



WITH US YOUR MONEY IS SAFE ,YOUR BUSINESS IS SAFE.


We are the office partitions walls and office furniture supplier from China, we have our own factory and showroom in Guangzhou .Welcome to visit us.


We offer
1:Factory direct price
2:Nice quality
3:Quick shipping with 5 days
4:Small order welcome
5:Support customer designs
6:More than 3 years warranty
