Laminate Sound Absorbing Restaurant Movable Partition Walls Width 3 * 10550 Mm
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ISO 9001 |
| Model Number: | Movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $78-125 per square meter. |
| Packaging Details: | Paper carton,outside with wooden boxes. |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Feature: | Sound Proofing | Based Board: | 9/12 Mm MDF Or Plywood |
|---|---|---|---|
| Height: | Maximum 17 Meters | Thickness: | 65, 85 Or 100 Mm |
| Application: | Banquet Hall, Auditorium | Product Name: | Movable Partition Walls |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Laminate Board Sound Absorbing Mobile System Restaurant Movable Partition Walls
Movable partition walls features
1. Large selection of standard finish treatment.
2. It can quickly and easily separate the space.
3. Retractable top and bottom seals allow easy movement.
4. Quick divide by simple pull / latch operation.
5. No floor track is needed for movable partition walls for rooms.
6. Tight vertical seal prevents sound leakage and helps align the panel during installation.
7. Movable partition walls are a modern decorative style with noise insulation, heat insulation, and fireproofing function.
Folding partition walls technical details
| Technical Spec. BUNGE 65 SERIES | ||||||||||
| Model | Weight(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
|
BG65
|
22 | 60min | 32db | 65 | 680-1219 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | #60 |
|
BG65
|
27 | 60min | 38db | 65 | 680-1219 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | #65 |
|
BG65
|
35 | 60min | 45db | 65 | 680-1219 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | #80 |
| Technical Spec. BUNGE 80 SERIES | ||||||||||
| Model | Weight(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
|
BG80
|
30 | 60min | 40db | 80 | 680-1219 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | #60 |
|
BG80 |
38 | 60min | 45db | 80 | 680-1219 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | #80 |
|
BG80 |
47 | 60min | 48db | 80 | 680-1219 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | #100 |
| Technical Spec. BUNGE 100 SERIES | ||||||||||
| Model | Weight(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100 | 38 | 60min | 43db | 100 | 680-1219 | 5000-17000 | 30/40 | 30/40 | 140 | #60 |
| BG100 | 48 | 60min | 48db | 100 | 680-1219 | 5000-17000 | 30/40 | 30/40 | 140 | #80 |
| BG100 | 55 | 60min | 53db | 100 | 680-1219 | 5000-17000 | 30/40 | 30/40 | 140 | #100 |

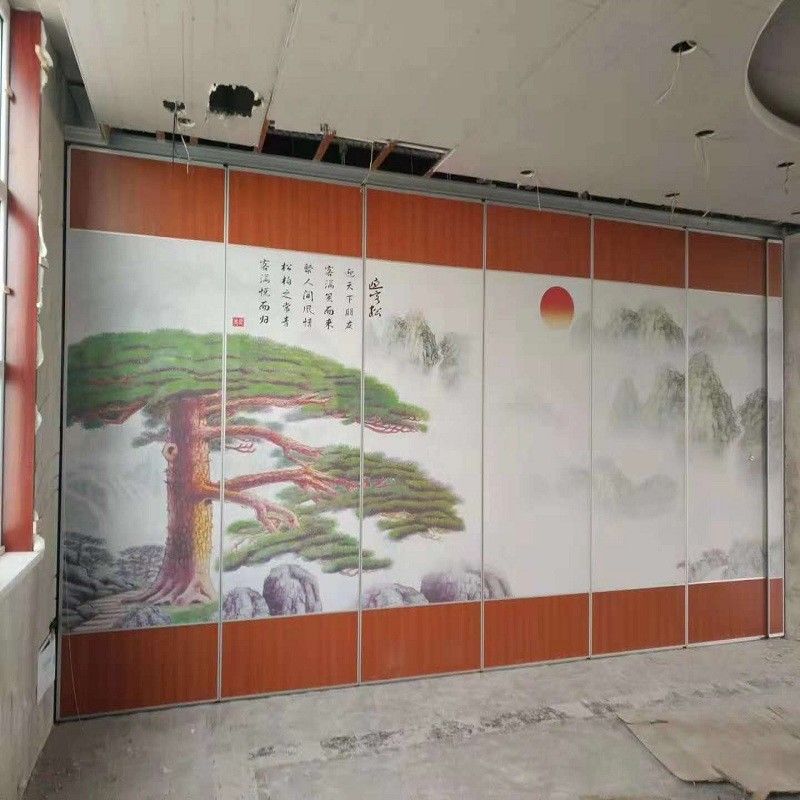

Movable Partition Walls Cases
Project site: India
Model: BUNGE 85 mm movable partition walls
Width: 3*10550 mm,1*6900 mm
Height: 3760 mm
Total: 4 sets, 145 square meters
Finish: Melamine
Color: CS-3087
