Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System

China Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System supplier
Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System supplier Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System supplier Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System supplier Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System supplier

Large Image :  Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System

Product Details:

Place of Origin: Guangzhou,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 65 mm

Payment & Shipping Terms:

Minimum Order Quantity: 20 square meters
Price: US $84-138 per square meter.
Packaging Details: Paper carton inside,and wooden boxes for outside.
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Contact Now
Detailed Product Description
Features: Soundproof,sliding Color: Accept Customized
Application: Conference Room,office,meeting Room Product Name: Office Partition Walls
Thickness: 65 Mm(2 9/16 Inch) Height: 2-4 Meters

Movable Soundproof Operable Walls Aluminum Sliding Tracks System Office Partition Walls





Office partition walls details:



Brand Name:BUNGE



Year of Establishment:2011



Model Number:85 mm office partition walls.



MOQ:10 square meters.



Delivery Time:8-12 days.



Supply Ability:5000 square meters per month.



Packing Details:Carton package,outside with wooden boxes.



Payment Terms:T/T is most common for us,others are also ok.



The office partition walls shall be top-supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used. The tracks are made from extruded anodized aluminum. The office partition walls track housing shall utilize grooves and interlocking steel pins for better alignment of adjacent track section, and shall be reinforced overhead by drop rod brackets.

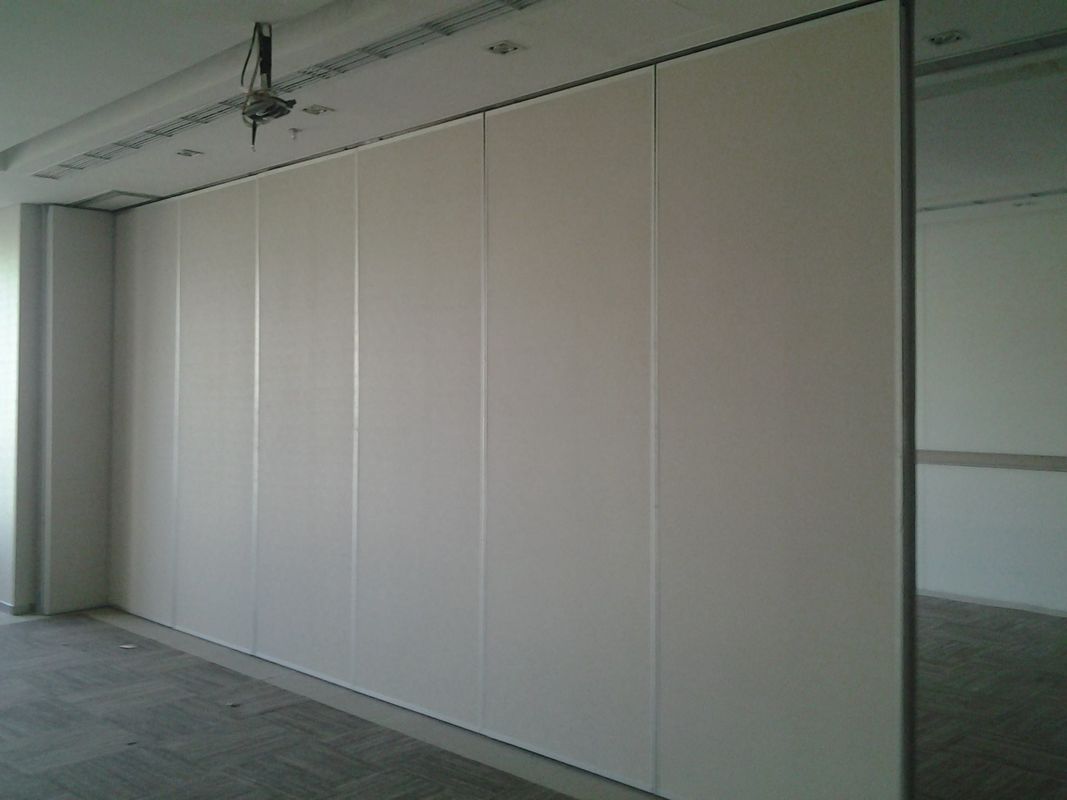

Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System





Office partition walls accsessories:



Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the partition wall panels price with wheels.



Wheels/Rollers:It is the carrier for the partition walls price,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.



Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “+”types are available.



Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.



Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.



Handle:Operate the retractable being up and down.



Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.



Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the partition walls prices.



MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

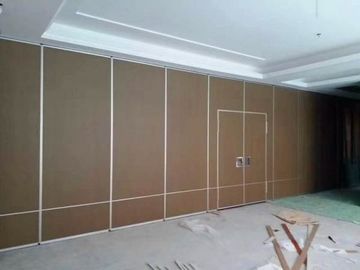

Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System



Office partition walls technical details:

Model BG65 BG85 BG100
Suspension system Aluminum hanging Aluminum hanging Aluminum hanging
Basic thickness 65mm 85mm 100mm
Total thickness 65/75/85/95mm 80/90/100/110mm 100/120/130mm
Max height Up to 3800mm Up to 6000mm Up to 8000mm
Width 600-1230mm 600-1230mm 800-1230mm

Floor/ceiling sealing

strength

Telescopic aluminum tube with rubber strip

Side walls sealing

strength

Double seal tape
Sound insulation level 26dB-30dB 28dB-34dB 32-40dB

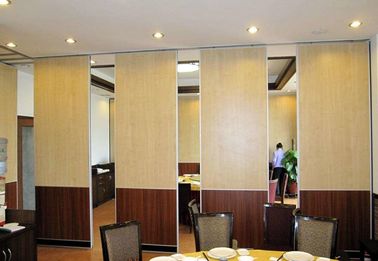

Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System



Office partition walls advantages:



1. No rail suspension: the floor has no track, just install the track on the ceiling;



2. Stable and safe: stable and reliable after partitioning, not easy to swing;



3. Sound insulation and environmental protection: sound insulation effect is good, the sound insulation coefficient can reach 53dB;



4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the large space is divided into small spaces to reduce air conditioning power consumption;



5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;



6. Beautiful and generous: the surface is arbitrarily decorated, and can be combined with the interior decoration effect;



7. Retractable and flexible: the partition is freely retractable and flexible, and one person can complete the whole process of partitioning;



8. Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;



9. Wide range of applications: can be used in conference halls, exhibition halls, restaurants, high clean factories and offices

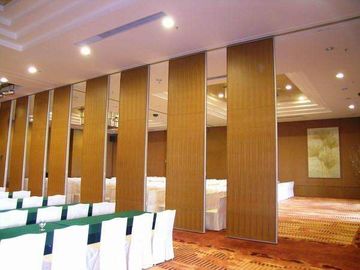

Movable Soundproof Office Partition Walls With Aluminum Sliding Tracks System
