Wooden Office Divider Portable Acoustic Panels Aluminum Frame

China Wooden Office Divider Portable Acoustic Panels Aluminum Frame supplier

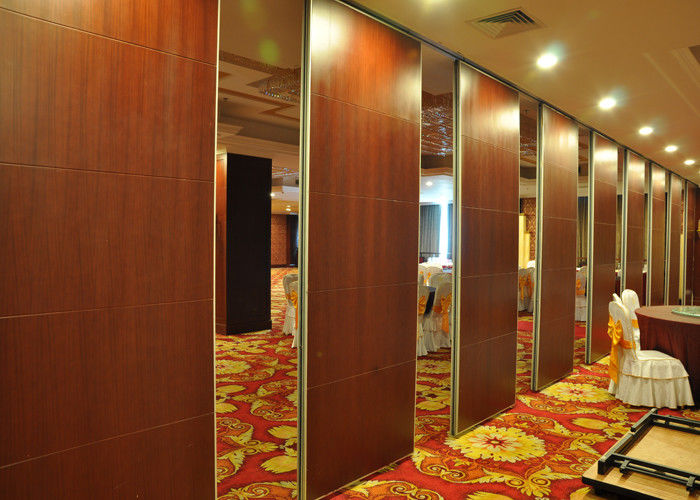

Large Image :  Wooden Office Divider Portable Acoustic Panels Aluminum Frame

Product Details:

Place of Origin: China (Mainland)
Brand Name: BUNGE
Certification: CE , SGS , etc .
Model Number: Type65

Payment & Shipping Terms:

Minimum Order Quantity: 10 Square Meters
Price: US $ 100 - 300 / Square Meter
Packaging Details: Carton package , MDF batten on four section sides , foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Contact Now
Detailed Product Description
Type: Room Dividers Material: Wooden
Track: Aluminum Sound Proof: 32 / 38 DB
Position: Commercial Thickness: 65mm





Acoustic Room Dividers Panel ,  Wooden Office Divider , Aluminum Frame







Specifications :



Technical Parameter for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 4000mm

Sound proof

32 - 38db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

25 - 40kg/sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual







Description :



The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.





Operation :



Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.





Track :



The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.





Trolley :



BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.





Aluminum trim :



The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.



Wooden Office Divider Portable Acoustic Panels Aluminum Frame



Wooden Office Divider Portable Acoustic Panels Aluminum Frame
