• School Classroom Sliding Folding Door Sound Proof Movable Parititon
  • School Classroom Sliding Folding Door Sound Proof Movable Parititon
  • School Classroom Sliding Folding Door Sound Proof Movable Parititon
  • School Classroom Sliding Folding Door Sound Proof Movable Parititon
School Classroom Sliding Folding Door Sound Proof Movable Parititon

School Classroom Sliding Folding Door Sound Proof Movable Parititon

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO9001
Model Number: Type 85 sound proof partitions

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: USD86-140/m²
Packaging Details: Paper carton, outside with wooden box.
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 50000 m² per month
Get Best Price Contact Now

Detail Information

Product Name: Sound Proof Partitions Finish: Lanscape Painting Leather
Feature: Sliding And Folding Sound Insulation: 22 - 55 DB
Function: Divide The Space Pass Door: Single Or Double
High Light:

Sliding Folding Soundproof Partitions

,

55 DB Sound Proof Partitions

,

100mm Movable Parititon Wall

Product Description

School Classroom Sliding Folding Door Sound Proof Movable Parititon

School Classroom Sliding Folding Door Sound Proof Movable Parititon



Product Description



EBUNGE sound proof movable partition is made of high quality anodized aluminum frame with composite materials.the panel has a standard thickness of 65mm/85mm/100mm and a width up to 1200mm.Maximum height can reach 12000mm ( type 100) tall. its vertical seal. together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC-(32~55) in laboratory setting. Its excellent acoustic insulation property and maximum reach allow it to be used in demanding locations such as function rooms in starred hotels and convention centers.The panels move on a ceiling track with no requirement of floor guides or rails.

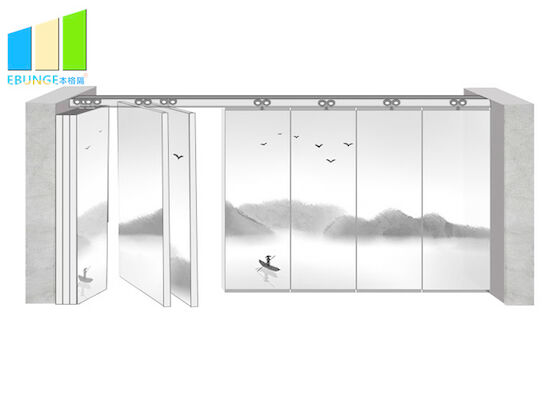

The sound proof movable partitions consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation - a simple half-turn of the waist high removable handle extends or retracts the sound seals.



Sound proof movable partitions have the characteristic of being very easy to maneuver and position. This is the result of the high quality, long-lasting components. The sound proof movable partition panels have a tongue-and-grove profile designed to obtain a perfect visual, geometric and sound-insulation continuity solution. An extendable pressure seal element is located at the top and bottom of each panel that provide sealing and panel stability to the floor and ceiling. Access doors, which are available in different sizes, are inserted in the panels and do not exceed the thickness of the wall system. Doors can be single of double pass door. The locking and releasing of the panels is done in an easy and rapid manner by means of a removable handle that operates a mechanical system. Sound proof movable partition panels are also easily slid on the overhead guide and this is guaranteed by a reliable mono or bi-track device and also because all systems have no floor guide. Panel storage is also extremely simple and can be designed to be hardly visible and various configurations are possible.

School Classroom Sliding Folding Door Sound Proof Movable Parititon 0



Advantages



1. The dubai movable wall partition is a hanging system, which have the ceiling rails, but have no floor rails. So it will not damage the floor or carpet at the project site.



2. All of the dubai movable wall partition can be customized, including the size, the colors and the surfaces.



3. The dubai movable wall partition can help you divide a big space into 2 or more smaller rooms. When you do not use them, they can be parked to the parking zone conveniently and quickly.



4. The operation is very easy, 1 person can finish the whole operation.



5. More than 60 kinds of colors to choose.



6. Different surfaces also available. Such as the MDF, Plywood, Melamine, Veneer, Fabric and Leather surface.



Technical Details



Model BG65 BG85 BG100
Suspension system Aluminum hanging Aluminum hanging Aluminum hanging
Basic thickness 65mm 85mm 100mm
Total thickness 65/75/85/95mm 80/90/100/110mm 100/120/130mm
Max height Up to 3800mm Up to 6000mm Up to 8000mm
Width 600-1230mm 600-1230mm 800-1230mm

Floor/ceiling sealing

strength

Telescopic aluminum tube with rubber strip

Side walls sealing

strength

Double seal tape
Sound insulation level 26dB-30dB 28dB-34dB 32-40dB

School Classroom Sliding Folding Door Sound Proof Movable Parititon 1



FAQ



1. What the sound proof partitions use for?



Sound proof partitions are the creative way to add flexibility and functionality to your space.extensively applied to star hotels, meeting rooms, ballrooms, clubs, banquet hall, convention centers, multi-function halls, tranning rooms and other facilities.



2. Have your sound proof partitions come in standard sizes?



No, actually all of our sound proof partitions sizes are supported customized.



The sound proof partitions panels move on the ceiling track with no floor track.



3. How long does it take to install a partition system?



We will provide a detailed schedule on receipt of the order and keep everything updated regularly on progress. The time depends very much on the site and anything which we try to meet wherever possible.



4. Can you give us an initial indication of the cost of a particular system?



Yes.we can.



We would need more information and possibly a site visit and survey before confirming and exact price.



5. Do I need to have an architect or building contractor?



Usually we only offer the site supervision service.if you are already using anothe contractor for other work then we can work with them to ensure a smooth process.



6. Do I need to provide technical information or drawings?



Yes, we need.



If you already have technical information or drawing then we can use them to build and install the selected products.



7. Are your products guranteed?



Yes,all of our products carry a full 3 Year gurantee,coverig all parts and defects.



We can also provide an extended warrantee if require and the products are expected to last a lifetime.
