6000 MM Height Partition Wall Hotel Sound Proof Partitions Fully Operable
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partition | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Function: | Soundproof Room Divider |
| Service: | ODM & OEM | MOQ: | NO MOQ |
| Finish: | Melamine; Fabric; Leather | Package: | Standard Wood Case |
| Frame Material: | Aluminum Alloy Profile | Height: | 6000 MM |
| Thickness: | 85 MM | Width: | 500 - 1230 MM |
| Place Of Origin: | Guangdong, China | Model Number: | 85 Mm Soundproof Partition |
| High Light: | sounproof folding partition,movable soundproof partition |
||
Product Description
Ebunge factory partition wall hotel sound proof partition hotels suppliers Guangzhou
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Design:
The soundproof wall series is the highest specification range of fully operable, individual-panel partition system. Acoustic insulation of up to 55db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panel assembly design that allows an acoustic break between the frame and outer layer. The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in three thicknesses, 65mm, 85mm and 100 mm, depending on acoustic rating(from 32db-55db).
Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminum overhead ceiling track system (no need for floor guide). Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
General use:

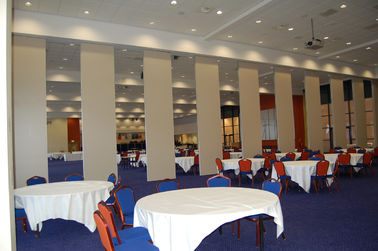

The effective division of space some times requires utmost flexibility. Whether the requirement is to divide a teaching area, temporarily partition a conference suite or simply create extra rooms out of one large space, the answer is movable walls.
Our partitions are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Modernfold never loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and service.

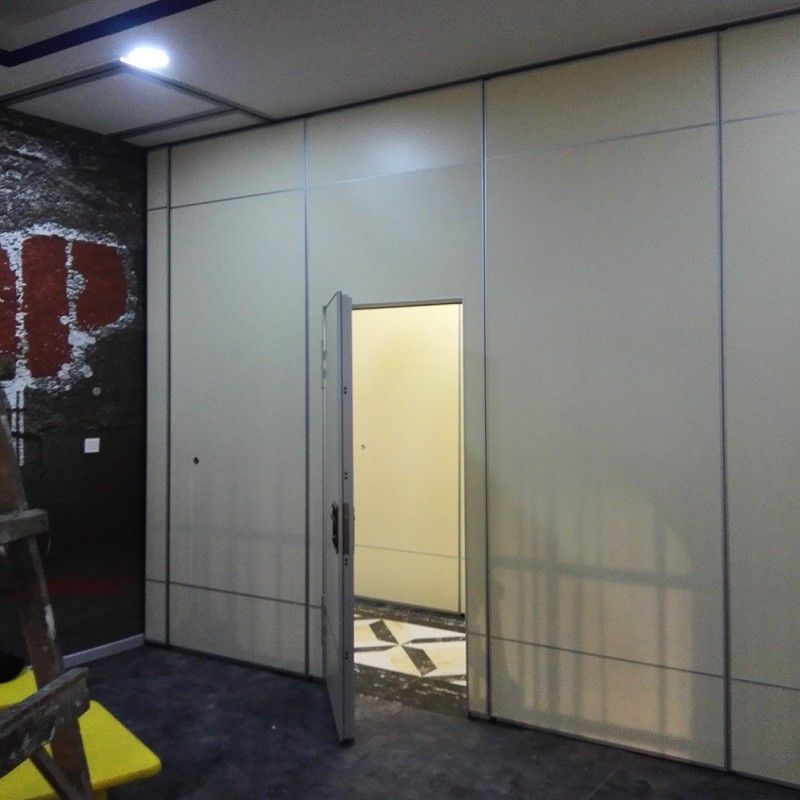

Pass door:
Pass door self-lock system
Using strong force spring press device to fix the pass door (door-in-door) instead of the fixing method with ground spike that can destroy the land.
Features:
1. Hanging on ceiling. The floor without a track, just put the rail mounted on the ceiling.
2. Excellent quality. Each piece of partition can turn around 360 degree.
3. Stable and secure. Partition is stable and reliable and not easy to swing.
4. Energy efficient. The large space can be divided into small space, in order to reduce air conditioning power consumption.
5. Heatproof&fireproof. Adopting effective fire prevention material can achieve a good heat insulation performance.
6. Elegant appearance. Surface can make any adornment.
7. Easy to collect. The partition can be hidden in the small apace.
8. Various applications. Hotels, exhibition halls, restaurants, multi-functional rooms, etc.
Finish surface:
The bottom panel is MDF or plywood, which is unfinished face.
You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as melamine, faux wood, woven fabric and leather.
Choose from our stylish fabric and leather covers and have the option to have a soft/hard surface.
We can also provide glass partition for glass clip or aluminum frame panel.
FAQ
1. What the Movable Partition Wall use for?
They are the creative way to add flexibility and functionality to your space.extensively applied to star hotels, meeting rooms, ballrooms, clubs, banquet hall, convention centers, multi-function halls, training rooms and other facilities.
2. Have your partition wall products come in standard sizes?
No, actually all of our movable partition wall sizes are supported customized. The panels move on the ceiling track with no floor track.
3. How long does it take to install a partition system?
We will provide a detailed schedule on receipt of the order and keep everything updated regularly on progress. The time depends very much on the site and anything which we try to meet wherever possible.
4. Can you give us an initial indication of the cost of a particular system?
Yes.we can. We would need more information and possibly a site visit and survey before confirming and exact price.
5. Do I need to have an architect or building contractor?
Usually we only offer the site supervision service.if you are already using another contractor for other work then we can work with them to ensure a smooth process.
6. Do I need to provide technical information or drawings?
Yes, we need. If you already have technical information or drawing then we can use them to build and install the selected
products.
7. Are your products guaranteed?
Yes,all of our products carry a full 3 Year guarantee,covering all parts and defects. We can also provide an extended warranty if require and the products are expected to last a lifetime.
