Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 65 mm acoustic room divider partition

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcome
Price: $82-98 per square meter.
Packaging Details: Paper carton, outside with wooden box.
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 square meters per month
Get Best Price Contact Now

Detail Information
Product Name: Acoustic Room Divider Partition Height: 2 - 4 Meters
Feature: Soundproof Application: Office Partition Wall
Frame: Aluminum Pass Door: Single Or Double
High Light:

sound proof room divider

,

banquet hall room dividers

Product Description

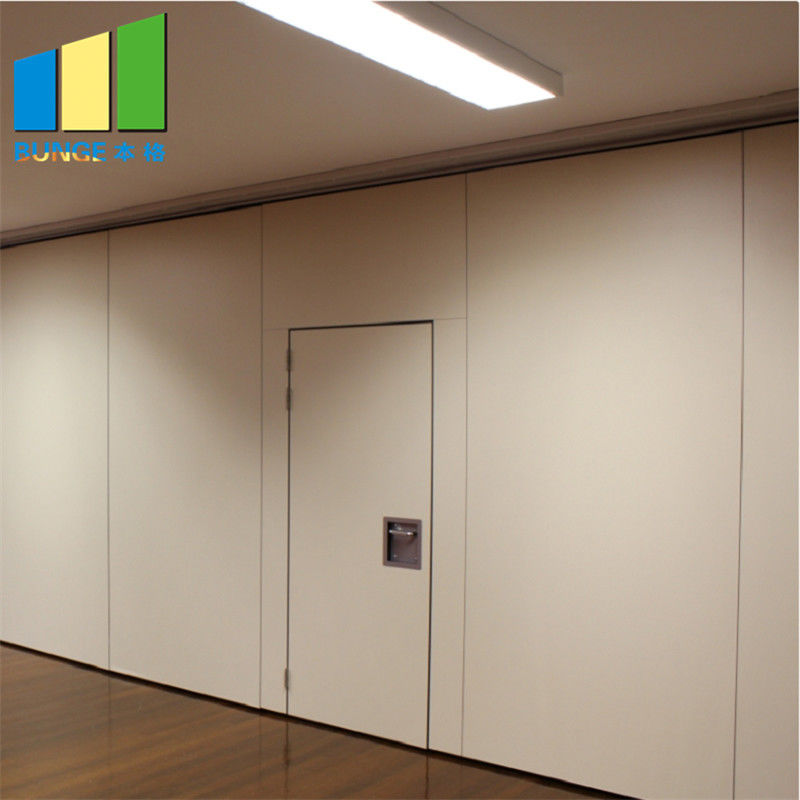

Sliding Folding Aluminium Frame Soundproof Acoustic Room Divider Partition for Office



Acoustic room dividers details



BUNGE acoustic room divider is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.The acoustic room divider panel has a standard thickness of 65mm ,85mm and 100mm,and a width up to 1219 mm.Maximum height can reach 17 meters tall.



The acoustic room dividers consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.



There are wide of range face finishes are available :melamine faced MDF or plywood, fabric, carpet, fabric, artificial, leather,wood veneer, high pressure laminate,Formica ,acoustic panel,white boad ect., Panels can also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.

Sliding Folding Aluminium Frame Soundproof Acoustic Room Divider Partition For Office 0



Technical information



Series BG65 BG80 / BG85 BG100 & BG125
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals		 Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle		 Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel		 Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)

Sliding Folding Aluminium Frame Soundproof Acoustic Room Divider Partition For Office 1



Acoustic room dividers features



1. Without floor rail suspension: no track on the floor, only need to install the track on the ceiling and flat ceiling decoration;

2. Stable and safe: stable and reliable after the activity screen, not easy to swing;

3. Noise and environmental protection: acoustic room dividers sound insulation effect, the maximum sound insulation coefficient of up to 55dB;

4. Insulation and energy-saving: The active screen has excellent thermal insulation performance. According to different occupancy rates, the large space is divided into small spaces to reduce various losses;

5. High-efficiency fire prevention: The acoustic room divider is made of high-efficiency fireproof materials, with good fireproof performance;

6. Beautiful and generous: the acoustic room dividers surface decoration, can be unified with the indoor decoration effect; can complete the entire process of partition;

7. Easy to collect: When you do not use the acoustic room dividers, they can be hidden in a dedicated storage cabinet, which does not affect the overall appearance;

8. Training customers to cut off the use of skilled activities.
Sliding Folding Aluminium Frame Soundproof Acoustic Room Divider Partition For Office 2
