Payment & Shipping Terms:
|Product Name:||Sound Proof Partition Panel||Width:||800 - 1230 Mm|
|Material:||MDF + Aluminum||Application:||Church Partition Walls|
|Track:||Aluminum Alloy||Warranty:||3 Years|

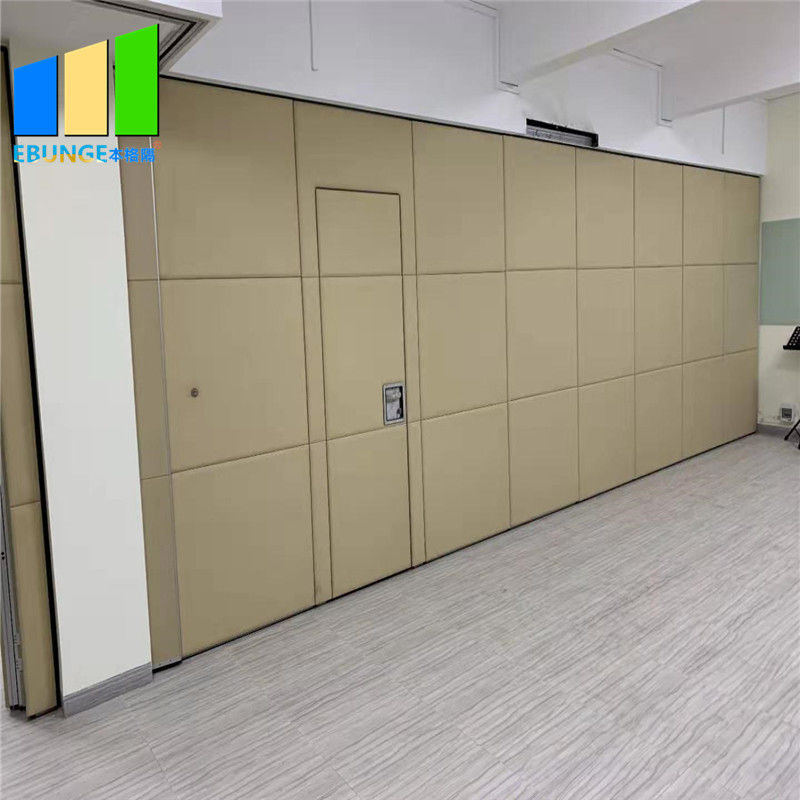

Church Absorbing Movable Sliding Folding Wall Sound Proof Partition Panel With Pass Door
Is there a gap between up and down for the movable partition walls?
Some people are confusing that, if there is no gap, how the movable partition walls move and slide?
Also some clients asked us whether there is a space opened at the bottom? If yes, it will cross the sound through the bottom side. Your movable partition wall will be not a sealing system, and they are not sound proofing.
Yeah this is amazing, as a professional manufacturer, we can say that there is almost no gap between up and down, and there is no gap between panels and panels. May be some people is thinking that it is impossible.
Actually there is an up and down retractable mechanism system inside our movable partition walls, we will use a handle to operate, and let it move and fixed.
The contract range is 22.5 mm, it means that when you use a handle to operate the panels by 180°, the up and down mechanism will attach to our track system and floor, but of course it will not damage the floor, just a touch to the floor, then the movable partitions will be fixed and not swing easily. On the contrary, also using a handle to operate 180°, the up and down mechanism will be contracted 22.5 mm, at this moment, the movable partition walls can be moved and slide.
Nowadays the movable partition wall is a mature product. When you use them, they can help you divide a big hall into 2 or more smaller rooms. And when you do not use them, they can be parked to one site. And they are widely used in hotel, banquet hall, office, conference hall, studio, function hall, church, stadium, classroom and so on.
Sound proof partition panels features
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|
