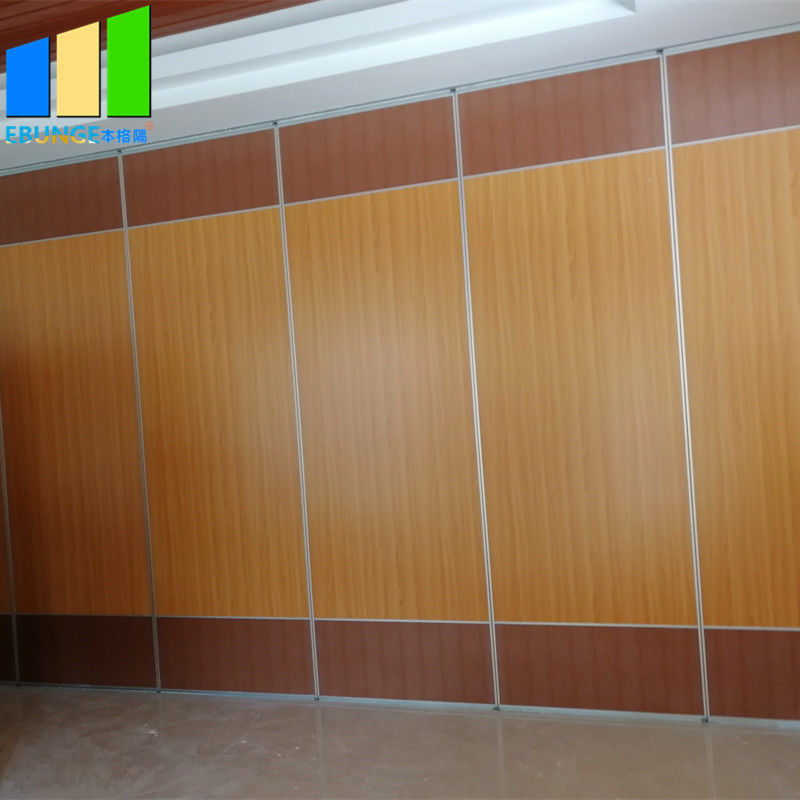

Large Image :  Plywood Sound Proof Partitions Board Folding Wood Sliding Door Movable Folding Doors Room Dividers

Product Details:

Place of Origin: Guangzhou,China
Brand Name: EBUNGE
Model Number: Series 65 mm sound proof partitions

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 60-119 USD per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Contact Now
Detailed Product Description
Product Name: Sound Proof Partitions Material: Aluminium And Mdf Board
Height: Less Then 4 M Width: 500-1200 Mm
Thickness: 65mm Aluminum Frame Function: Space Divide
Finish: Melamine, Fabric, Leather, MDF Bare Finish Warranty: Sound Proof Partitions Warranty 3-5 Years

Plywood sound proof partitions board folding wood sliding door movable folding doors room dividers

Description:

Environmental protection and light material.

Top hung system without the need for a floor track.

Retractable top and bottom seals ensure effortless movement of panels.

Concealed or exposed panel edge profiles.

Numerous panel stacking options for complete flexibility.

Extensive range of surface finishes available, easy construction and transportation.

The system offers various levels of sound reduction.

Combines elegance with robust construction.

Allow Customization.

Plywood Sound Proof Partitions Board Folding Wood Sliding Door Movable Folding Doors Room Dividers

Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Plywood Sound Proof Partitions Board Folding Wood Sliding Door Movable Folding Doors Room Dividers

Structure:

The operable wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 85mm and depending on the insulation material ensures a soundproof resistance of 40-49 dB (decibels).



When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm. The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc).



In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by 15 mm.

At the end of the wall, a jamb profile is installed to close the last panel and which is also used as a door. This, together with the jamb is installed to start the wall and allows for the walls width to be adjusted 20 mm.

Plywood Sound Proof Partitions Board Folding Wood Sliding Door Movable Folding Doors Room Dividers

With more economy and higher decorative, beautiful and safe, will not scratch the skin.

Installation does not affect the construction of smallpox and the ground.

Optional with a variety of occasions partition wall, can be customized according to customer requirements.

In the re-assembly can make full use of building materials.

Selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
