|Product Name:||Movable Partition Wall||Material:||Aluminium Frame And Mdf Board|
|Height:||Less Then 6 M||Width:||500-1200 Mm|
sounproof folding partition,
movable soundproof partition

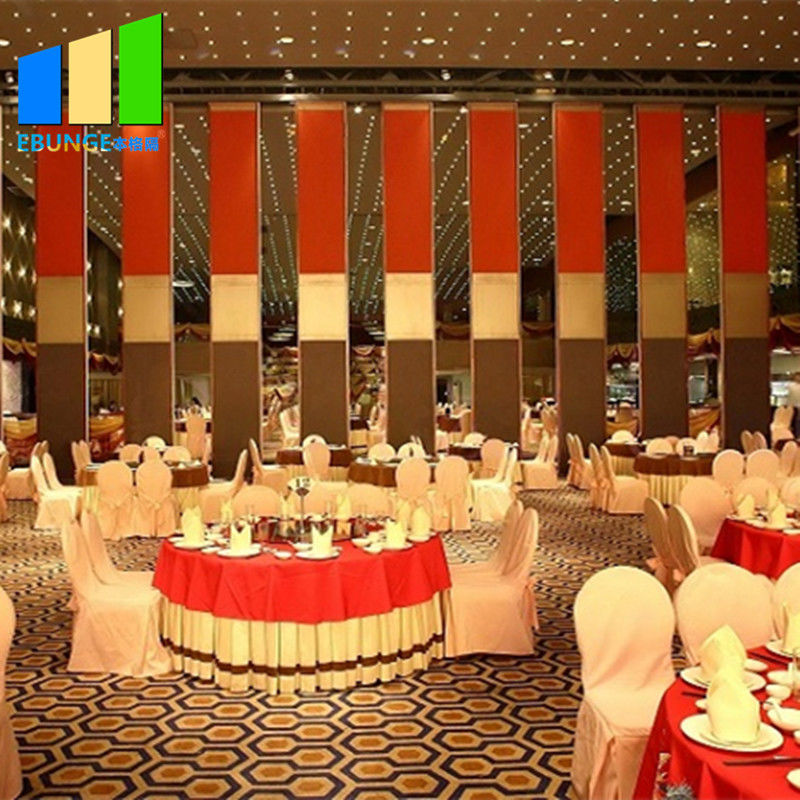

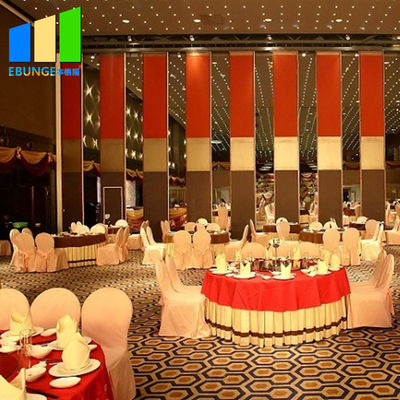

Office partition panel wood convention center soundproof wall partition for wedding hall
EBunge acoustic operable partitions are used to divide meeting rooms, conference rooms, restaurant and banquet halls etc., it provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively applied to hotel industry.
EBunge offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.
The movable partitions consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.
The quick set retractable seals save the owner a great deal of time during setup and take down Time means money, especially for clients that rent their facilities for meetings and other functions.
EBunge provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Movable partition composition:
Movable partition include the track, hanging wheel, sealing strip, frame, finish, sound insulation material, telescopic mechanism, sealing strip and other parts.
1. Track: the material is made of 6063-t5 anodized aluminum, which is used for hanging the partition.
2. Double roller: the roller is made of POM, the screw is made of no. 45 tempered steel, and the hanging partition can be rotated at any Angle on the horizontal plane, and can pass through the intersection point of L,T and X of the track along the pulley.
3. Roller seat: the material is A3 steel, which connects the roller with the partition.
4. Top and bottom seal aluminum: the material is anodic aluminum oxide.Sealing the gap between the partiton to ceiling and partition to gorund. It's soundproof and can fixed the partition.
5. Sealing tape: material is PVC, surface color is black.It can reduce the sound and light.It acts as a buffer when the movable partition touched the wall.
6. Base board: medium density fiberboard,also called MDF board.
7. Sound-proof cotton: PAR sound-absorbing glass fiber. Fireproof performance, thermal resistance and noise reduction coefficient are all in line with relevant standards.
8. Aluminum frame: All the frame is made of aluminum.
9. Telescopic mechanism: it is made of standard A3 steel and spring steel, operated by pressure spring, which can automatically adjust the gap between the screen and the ground.
10. Handle: made of standard A3 steel, it is used for operating up and down telescopic mechanism.
11. Finish structure: Movable partition finish can be glass, melamine, fireproof board, fabric, leather,gypsum board and other decorative materials.
12. Light steel keel:Medium density double-sided plastic board partition and polyurethane foam insulation composite board partition, instead of the traditional brick wall paint, you can see with the progress of science and technology in our country, bring people's lives great changes.
Q: What is the price for movable wall?
A: Our movable wall system is customized and the cost is calculated by total square meter.Different types have different prices.So we need you provide us detailed dimensions like height and width,finish options,parking options to get a quote.We also need your layout drawing if possible.
Q: Is the movable partition wall acoustic (soundproof)?
A: Yes, our movable wall system is soundproof.We have different acoustic materials infill to reach different acoustic rating.
Q: What finish options you have for partition?
A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply melamine laminate, wood veneer,fabric,PU leather and soon.It depends on your requirement.
Q: Are you a manufacturer or trading company?
A: We are the biggest movable wall partition manufacturer in Guangzhou city.We have worked for this business over 10 years. Our factory is located in Liwan district,Guangzhou city, China.You are warm welcome to visit us!
Q: How to install the partition? Will it difficult to be done?
A: It is not difficult to install our partitions.Our partitions are top supported system without any floor track.So top
structure will be very important.We have very detailed drawings and videos showing how to install,so your people just need to follow them step by step.
Q: Can you send engineer to install? What will the cost be?
A: Sure.We will send our engineer to help installing at site.He will instruct your workers to do the job but won't do the installation by himself.
Q: Where is your office? Do you have office in overseas?
A: So far we don't have office in overseas,our office is located in Guangzhou city.
Q: Are your products guaranteed?
A: Yes,all of our products carry3-5 years guaranteed.
