Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall

China Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall supplier
Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall supplier Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall supplier Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall supplier Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall supplier

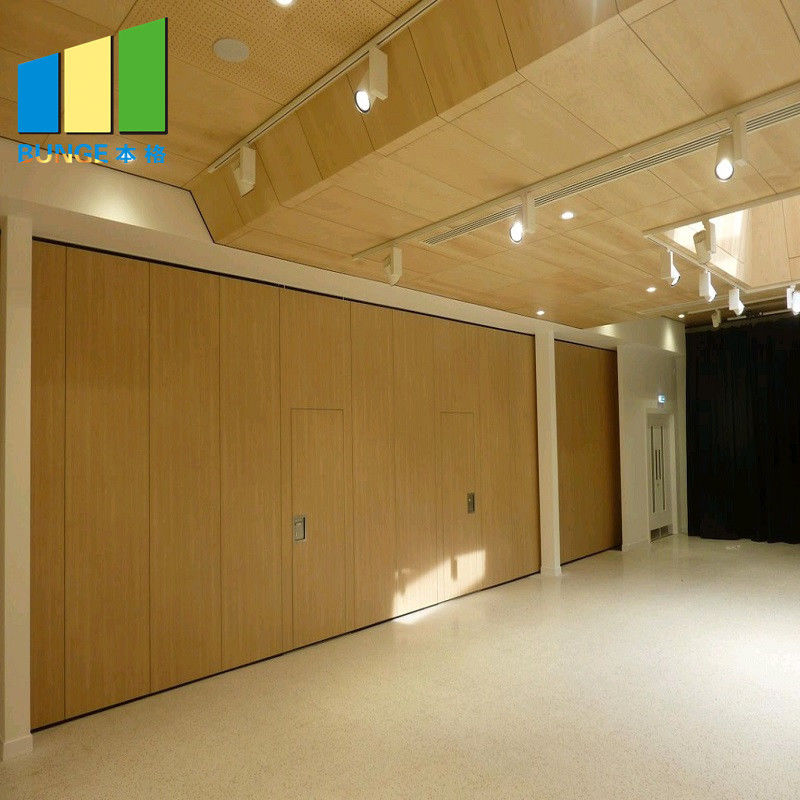

Large Image :  Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO 9001
Model Number: 65 mm moveable acoustic partitions

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ, small quantity welcome
Price: $82-88 per square meter
Packaging Details: Paper carton, outside with wooden box
Delivery Time: 7-15 days
Payment Terms: T/T, MoneyGram
Supply Ability: 50000 square meters per month
Contact Now
Detailed Product Description
Product Name: Moveable Acoustic Partitions Application: Conference Hall Partitions
System: Hanging System Thickness: 65 Mm(2 9/16 Inch)
Style: Folding And Sliding Sample: Free

Aluminum Moveable Door Partitions Acoustic Partition Walls for Conference Hall



Moveable acoustic partitions details



1- 65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.



2-Top supported without floor track or guide, only have track on the ceiling.



3- clear anodized extruded aluminum tracks and frames,customized powder coated color are available.



4- Sound insulation certificate :STC 32db to 52db, ASTM standard of acoustic rate.



5- Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.



6- Fast delivery and Rich experiences in oversea project installation guide & supervision.

Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall



Technical Information



Description of the whole system
Item Moveable acoustic partitions systems
Partition Height 2-17 meters
Sound Transmission Class(STC) 32-55db
Description of accessories
Roller Imported dupont POM material roller,bearing capacity 225-1300kg
Track System Clear anodized 6063-T6 aluminum double track
Surface finish option MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect.
Junction "T"junction, "L" juntion, cross/ "X" juntion
Product name Moveable acoustic partitions
Material Melamine+MDF board, or MDF board+acoustic panel, or plaster board+acoustic panel, or magnesium+acoustic board, or sound insulation board+acoustic board.
Finish Anti-fire fabric, anti-fire leather, melamine, fabric acoustic panel.
Thickness 65mm, 85mm, 100mm
Width 800-1200mm
Max height 4500mm
Acoustic reduction coefficient 30-45 dB
Hermetic bar flex distance 46-60mm
Weight 18-35 kg/m2
Environmental E1 grade
Application Exhibition hall, international conference center, any places where need to be separated and full used easily.

Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall



Moveable acoustic partitions features



1. No rail suspension: the floor has no track, just install the track on the ceiling;



2. Stable and safe: stable and reliable after partitioning, not easy to swing;



3. Compartment environmental protection: the effect of the compartment is good, the maximum sound insulation coefficient can reach 50db;



4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the hall is divided into small spaces to reduce air conditioning power consumption;



5. Efficient fire prevention: the moveable acoustic partition is made of high-efficiency fireproof material and has good fireproof performance;



6. Beautiful and generous: the moveable acoustic partitions surface is arbitrarily decorated, and can be combined with the interior decoration effect;



7. Retractable and flexible: the moveable acoustic partition is freely retractable and flexible, and one person can complete the whole process of partitioning;



8. Convenient collection: When closing the board, the moveable acoustic partition can be hidden in the special storage cabinet, which does not affect the overall appearance;



9. Wide range of applications: products used in hotels, hotels, restaurants, conference halls, exhibition halls, high clean factories and offices.

Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall
