Banquet Hall High Wooden Folding Conference Acoustic Room Dividers In Thailand
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm folding acoustic room dividers |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Acoustic Room Dividers | Application: | Banquet Hall Dividers |
|---|---|---|---|
| Weight: | 25-80 KG/square Meter | Thickness: | 65 Mm(2 9/16 Inch) |
| Material: | MDF, Sound Absorption Cotton, Aluminium | Service: | OEM ODM |
| High Light: | sound proof room divider,banquet hall room dividers |
||
Product Description

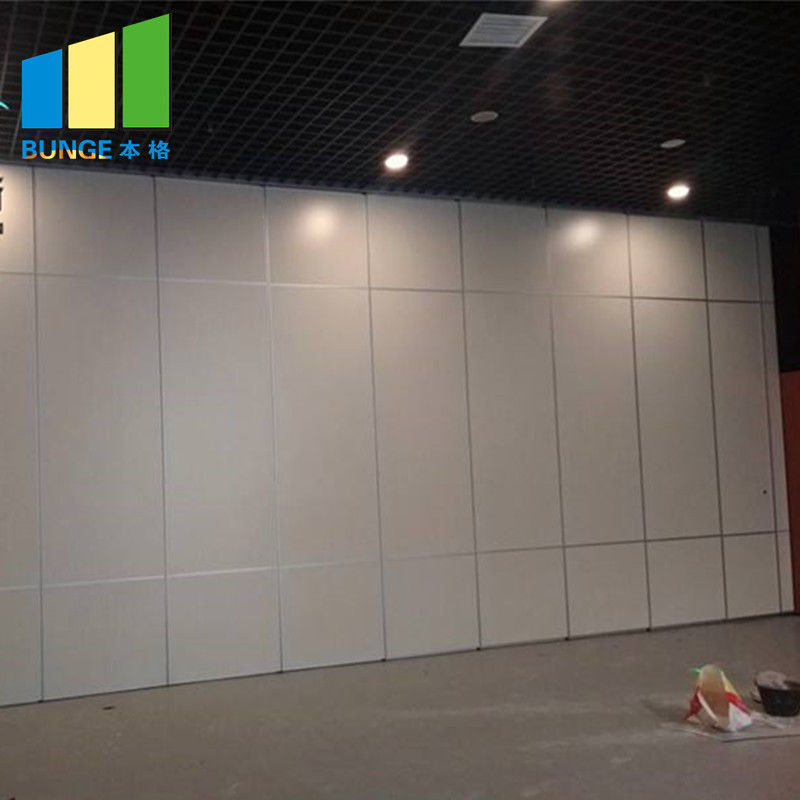

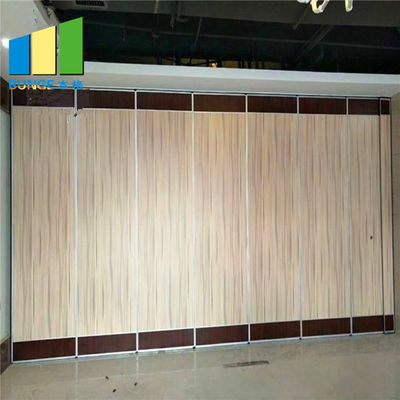

Banquet Hall High Wooden Folding Conference Acoustic Room Dividers in Thailand
Finished project
Thanks for the trust from the client. We finished the packing and shipped to agent's warehouse on March 4th,2019.
This is a project in Lebanon, using the steal materials,including the steel tracks,the steel rollers and the steel haging clips. 8 meters height partitions, 30 meters width, totally 2 sets of walls, around 480 square meters. We just delivered the accessories by air, and we have sent our engineer(Mr. Zeng) to Lebanon to supervise the installation.
Actually our steel system can support 900 KG materials,so that is enough to support the panels for this project.
Do you still worry about the installtion? Please feel free to contact us for more details, our professional team can help you about that.
|
|
Folding acoustic room dividers accessories
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the folding acoustic room dividers panels with wheels.
Wheels/Rollers:It is the carrier for the folding acoustic room dividers,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the folding acoustic room dividers.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Technical Information
| Series |
Thickness (mm) |
Applied height (m) |
Width of Intermediate panel (m) |
Acoustical reduction coefficient (db) |
Hanging weight |
| #65 | 65 | 2.0~4.5 | 0.6~1.2 | 35 | 30kg/m2 |
| #85 | 85 | 3.0~6.8 | 0.6~1.2 | 45 | 35kg/m2 |
| #100 | 100 | 5.0~8.0 | 0.6~1.2 | 53 | 45kg/m2 |
| #125 | 120 | 7.0~13.0 | 0.6~1.2 | 65 | 65kg/m2 |
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
