Payment & Shipping Terms:
|Product Name:||Sound Proof Partitions||Application:||Restaurant Partition Walls|
|Panel Thickness:||65 Mm||Style:||Sliding|
|Surface:||Melamine||Service:||OEM ODM Trial|

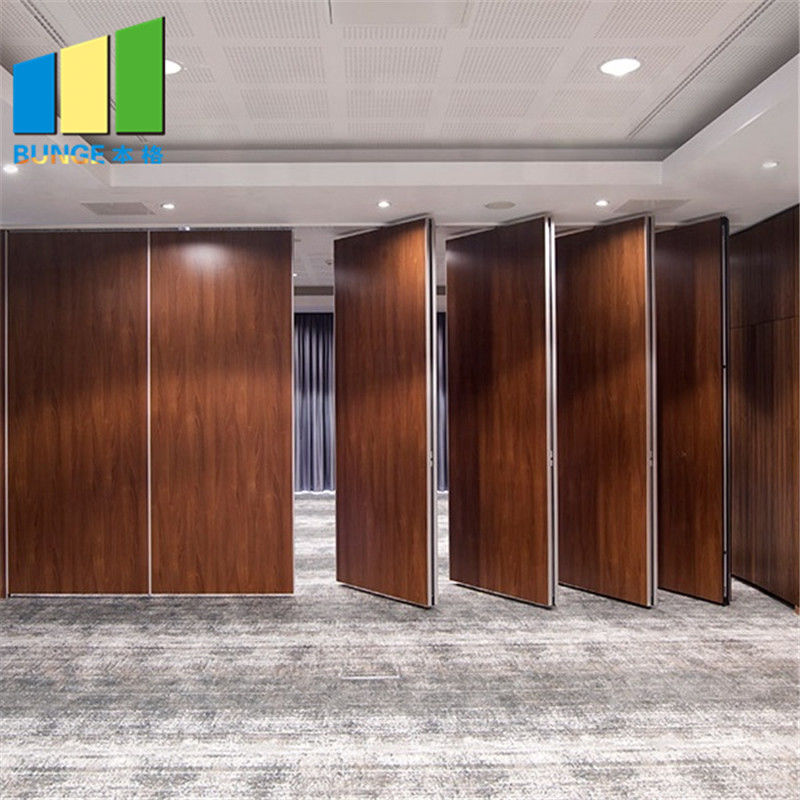

Folding Door Operable Walls Movable Sound Proof Partitions for Restaurant
The movable sound proof partition has brought great change to people's work and daily life. It can divide the large space into several individual rooms which can meet your specific need.
The movable sound proof partition is usually used in high-end hotels or restaurants. when holding some kinds of activities by different guests, such as holding wedding ceremony, victory banquet and some other big parties, we can fold the partitions, while at other time we can unfold them. The whole process is quite easy and convenient.
It is thickness 65 mm (2 9/16 inch) per panel. Maximize height is about 8 meters.Soundproof feature is about 42 dB to 53 dB.
1.Top hung with no floor track required.
2.Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle.
3.Single or twin point suspension for central or offset stacking options.
4.Variable track arrangements.
5.Whiteboard or Painted.
6.Optional inset pass doors,easy to be in or out.
7.Closure panel fitted with face operated telescopic "nose".
The movable sound proof partition wall panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.
Movable sound proof partition wall system is a high quality bespoke system to suit timber panels up to 150 kiliograms in weight, there are multiple options for Door types, parking areas and track layouts.
Each door is a top hung straight sliding panel which sits inline with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails.
After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||28-38dB Rw||28-42dB Rw||32-50dB Rw|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Contact Person: Michelle Mo
