65 Mm Wood Material Office Sliding Partition Wall 3-5 Years Warranty
Product Details:
Place of Origin: | China |
Brand Name: | Bunge |
Model Number: | 65mm movable wall |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Square Meters |
---|---|
Price: | USD 75-95/ Square Meter |
Packaging Details: | Carton package , Paper package |
Delivery Time: | 10 working days after received your down payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 5,000 Square Meters per Month |
Detail Information |
|||
Product Name: | Movable Partition Wall | Warranty: | 3-5 Years |
---|---|---|---|
Advantage: | Sliding,folding | Size: | Customized |
Color: | Customized | Material: | Wood |
High Light: | sliding folding partition,sound proof sliding partitions |
Product Description

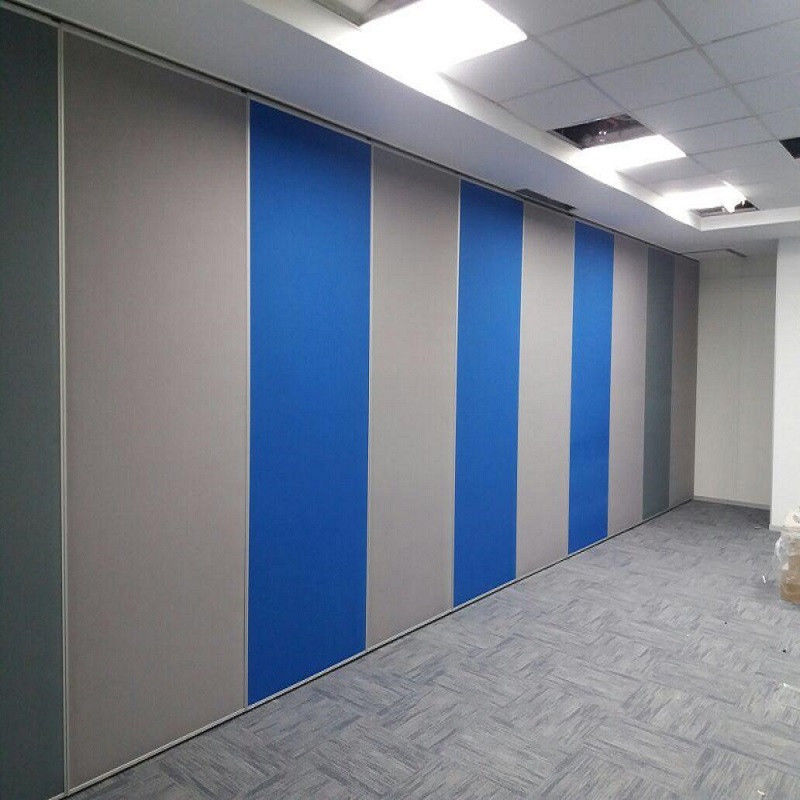

65 mm Acoustic Movable Partition Walls System Manufacture Details Cost
Movable partition wall system description:
The sliding partition has the characteristics of easy installation, reusability, industrial production, fire prevention and environmental protection. Mobile partitions bring great convenience to people's work. For example, the active screen, you can fold it aside when you need it, so that the two spaces are temporarily joined together to make it bigger and convenient for temporary departmental meetings. These products use a railless system that is as strong as a wall.
Restaurant movable partition wall
The acoustic movable partition wall can be pushed to the top of the ceiling and the industry is defined as moving high partitions. The partition is completely enclosed from top to bottom and has a high sound insulation function, which meets the requirements of fire prevention and environmental protection, and can be reused.
Series | BG 65 | BG 85 | BG100 |
Panel supension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 4000 mm | 6000 mm | 8000 mm |
Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
Face material | 9 mm | 9 mm | 9 mm |
Pass doors | Single Door or Double Door | ||
Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
Components of Sliding Partition Walls
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the movable partition walls with wheels.
Wheels/Rollers: It is the carrier for the movable partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “+”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
About us-Best way to build a soundproof partition wall
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.Welcome partition wall contractor discuss together.
