Function Room Sliding Partition Walls / Hanging System Acoustic Movable Walls
Product Details:
Place of Origin: | Guangzhou, China |
Brand Name: | EBUNGE |
Certification: | ISO 9001 |
Model Number: | 65 mm sliding partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ, small quantity welcome |
---|---|
Price: | $82-98 per square meter. |
Packaging Details: | Paper carton, outside with wooden box. |
Delivery Time: | 7-15 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50000 square meters per month |
Detail Information |
|||
Product Name: | Sliding Partition Walls | Application: | Function Room Partitions |
---|---|---|---|
Sample: | Free | Warranty: | 5 Years |
Size: | Partition Walls Customized | Color: | Accept Customized |
High Light: | sliding folding partition,sound proof sliding partitions |
Product Description

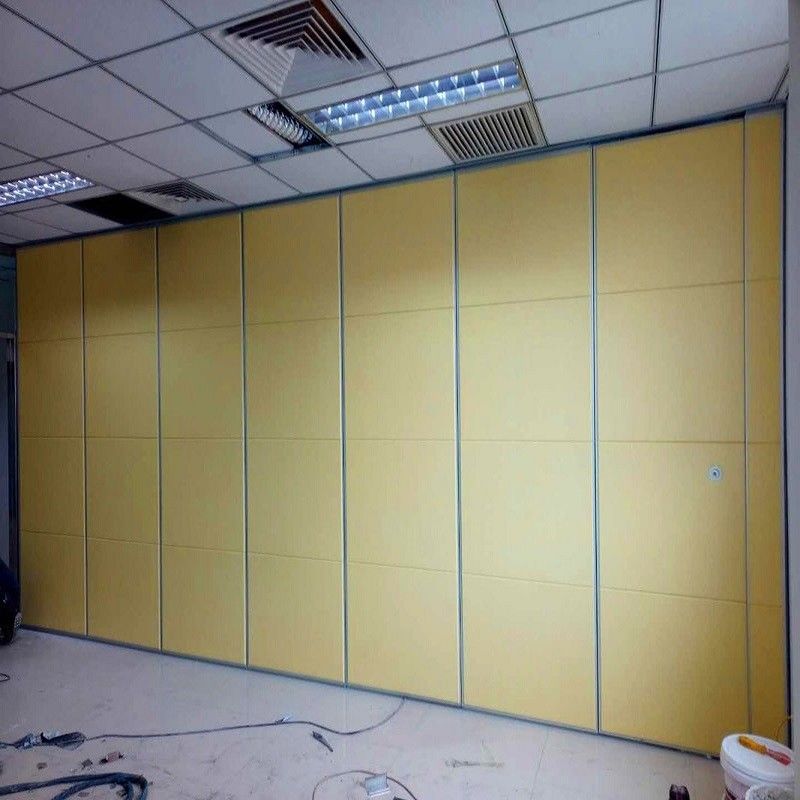

Function Room Sliding Partition Walls / Hanging System Acoustic Movable Walls
Sliding partition walls details
Track: The sliding partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The sliding partition walls panels will be made from 10 mm MDF boards and shall be 65 mm thick and 1200 mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Our sliding partition walls system accessories are custom for each client and project,and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on sliding partition walls system.
Sliding partition walls advantages
1. Efficient fire prevention: the material of the sliding partition wall is made of fireproof material and has good fireproof performance;
2.Heat insulation: according to different occupancy rates, the space can be divided into small spaces, and good thermal insulation performance;
3.Sound insulation and environmental protection: its sound insulation coefficient can reach 53dB, sound insulation effect is good;
4.Stable and safe: stable and reliable, not easy to swing, shake;
5.No rail suspension: no need to install the ground rail on the floor, its track is installed on the ceiling.
Technical information
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 4000 mm | 6000 mm | 18000 mm |
Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
Face material | 9 mm | 9 mm | 12 mm |
Pass doors | Single door or Double door | ||
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
