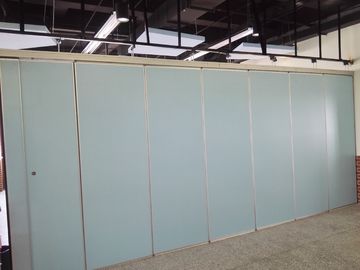

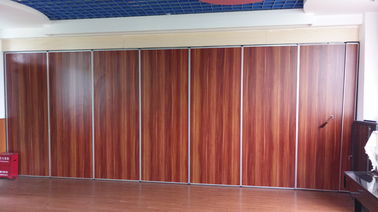

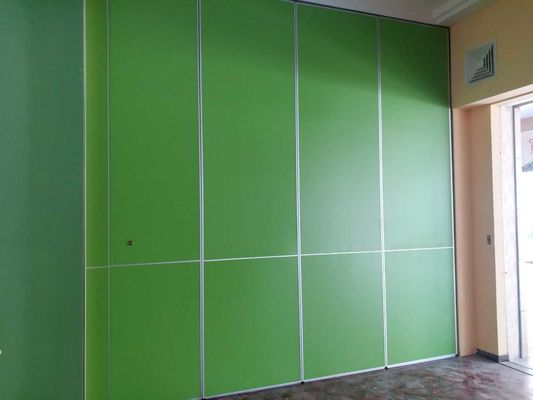

Custom Design Movable Wall Track Sliding Acoustic Partitions Wall For Classroom
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm acoustic partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | 85 / 126 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Thickness: | 65 Mm |
|---|---|---|---|
| Height: | Less Than 4 M | Width: | 800-1300 Mm |
| Surface: | Melamine,fabric,leather | Open Style: | Sliding And Folding |
| Function: | Divide Space | Application: | Classroom,office,conference Hall |
| Material: | MDF Board+Aluminium | ||
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description
Custom Design Movable Wall Track Sliding Acoustic Partitions Wall for Classroom
Specification:
In the past, there are special occasions where a large space was divided into different levels and different specifications. It took a lot of steps to complete the work, and the space that may be distributed sometimes is not particularly reasonable due to technical reasons.
It will be affected, and this problem has been effectively solved since the rise of movable partition wall. The use of movable partition wall to separate the large space and the effect is outstanding, and it is very simple to use, no problem, and its The so-called active partition is the performance of free movement.
Installation movable wall partition is free to place its own position, and unsatisfactory can be properly moved without spending too much time.
Feature:
Individual panels help to make most of the space.
Comes with top and bottom seals for easy movement.
Boasts sturdy contraction with aluminum frame.
Brags high durability for long life.
Helps to live a noise free life.
Available with different styles and designs to meet individual needs in a perfect manner.
Acoustic partition wall advantage:
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;
4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||

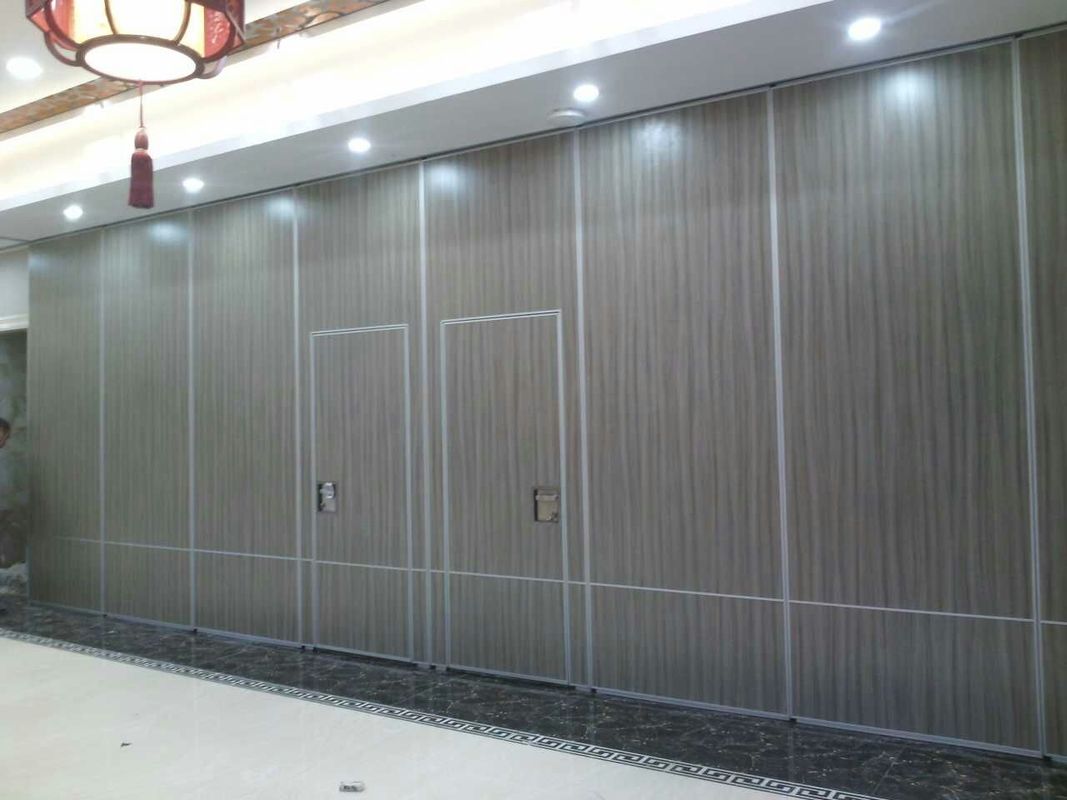

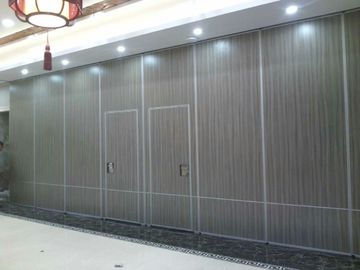

| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Acoustic partition wall profile:
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 22.5 MM or 23 mm.
Our service:
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
