|Produce Name:||Movable Partitions Wall||Finish:||Melamine ,fabric，MDF|
|Thickness:||65 Mm||Application:||Office, Church ，Auditorium，banquet Hall|

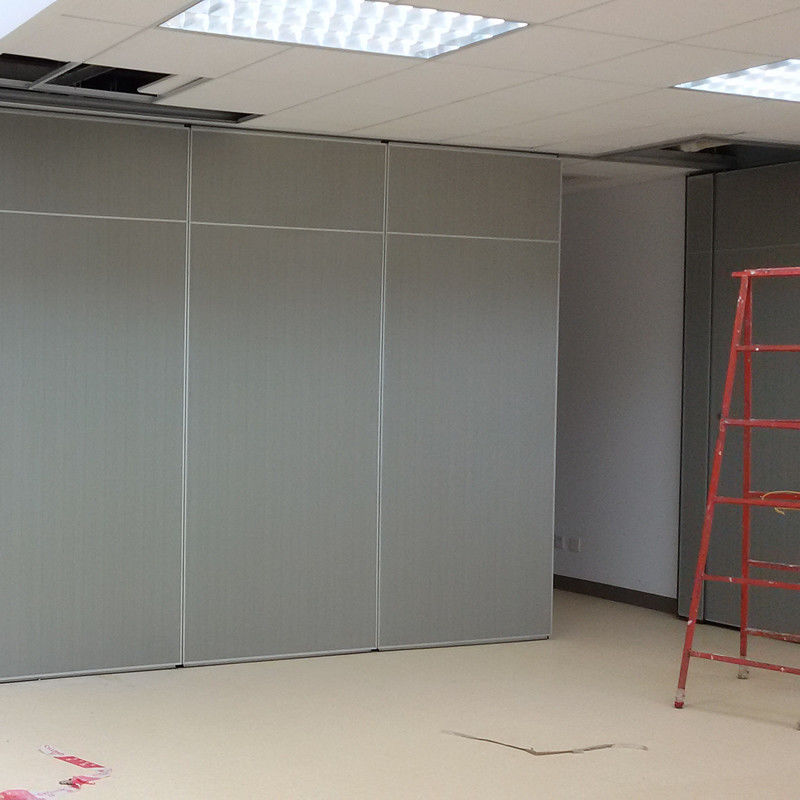

Soundproof Sliding Movable Walls For Auditorium With Aluminum Frame MDF Finish
BUNGE Partitions panels are hung from a precision extruded heavy duty aluminum top track with ball bearing trolleys. Suspended from the structure by threaded steel rods or brackets. No floor track or guides are required.
Each partition comprises2 no.adjustable wall mounted jamb posts suitable for opening of unlimited width. Panels are positioned within the jamb posts and locked into position by means of two retractable acoustic seals operated by a single control, securely fastening the panels between the floor and top track with flexible acoustic seals; creating a very good seal and locking the panels firmly in position across the opening. The last panel positioned has an additional telescopic vertical element which finally exerts pressure on all panels, ensuring that the panels are tightly closed together and the acoustic seals are fully compressed for maximum efficiency. The system is also availiable with electric panel operation. Constructed for a long trouble free life, the panels have internal frames incorporating the precision mechanical operating mechanism.
They are faced both sides as standard with high density particle board which can be finished with a wide range of exciting materials to suit the clients’ requirements.
Panel edges are fitted with precision interlocking trim sections with vertical acoustic magnetic seals. Cavity filled with acoustic sheet material bonded to the inside of the panel boards depending on the acoustic requirement.Trimless panel edges are also available (non-visible profiles).
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||400 mm||600 mm||800 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
