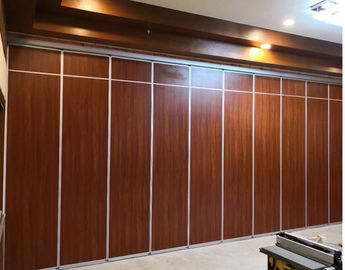

Laminate Movable Partition Wall , Full High Operable Sliding Room Partitions
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sliding Partition Walls | Thickness: | 65 Mm(2 9/16 Inch) |
|---|---|---|---|
| Frame Material: | Aluminum Alloy | Partition Material: | MDF+Aluminum |
| Style: | Sliding | System: | Hanging System |
| High Light: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description
Laminate Foldable Partition Walls,Movable Wall Partition,Full High Operable Sliding Partition Walls
Sliding partition walls features
1.The sliding partition walls can be cut off are varied and varied, and the characteristics of the hotel can be selected according to the overall decoration style of the hotel.
2.The outer frame of sliding partition walls is made of aluminum alloy, and its decorative surface is satisfied according to the customer's needs. For example, the veneer is made of non-combustible material and has strong fireproofing material. And the sound insulation effect of the sliding partition walls is also very good.
3.The sliding partition wall is highly utilized, its design is the integration of parts, which is to facilitate the better combination, so its combination is powerful, it can be reused, which reduces the cost of customers, can also achieve environmental protection. Energy saving and other functions.
4.The installation period of the sliding partition walls can be short, and the pollution of the construction is small, so that the entire project can be quickly improved. Efficiently meet the needs of customers.
5.The choice of sliding partition walls can be varied, according to the needs of the hotel, use different kinds of partitions, choose the sliding partition walls suitable for the hotel or conference room style, will bring more aura to the hotel conference room.The sliding partition wall is skillfully used in various places of the hotel, bringing a variety of convenience and beauty, and is well received by customers.
6.The surface decoration surface of the sliding partition walls can have various choices.
7.The biggest feature of the sliding partition walls is that it can be moved and can be reused. Its material will not bring waste to the environment. Therefore, the sliding partition walls material is a green material. For example, many company addresses will be continuously relocated. Then the company needs to consider the reusability of the company's installed sliding partition walls, which is more convenient for the user's service life, so it is a relatively cheap and cost-effective decoration.
8.Can be into a sliding partition walls of the material of a variety of colors, a variety of material components can be used in conjunction with each other, which can reduce material waste. It is efficient, stylish, elegant, concise, generous, beautiful and exquisite.
Sliding partition walls technical information
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60# 65# 80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
|
|
Panel Suspension
|
Top hunge system without the need for a floor track.
|
||
|
Panel Width
|
Each panel 600mm-1200mm.
|
||
|
Track
|
Aluminum OR Steel Track
|
||
|
Roller on panel
|
Single or Double Roller
|
||
|
Panel Frames
|
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
|
||
|
Top&bottm seals
|
Top and bottom pressure retractable seals ensure effortless moved and locked.
|
||
|
Module
|
700mm - 1200mm maximum.
|
||
|
Panel stacking
|
Numerous panel stacking options for complete flexibility.
|
||
|
Panel face
|
MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
|
||
|
Finishes
|
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
|
||
125 type sliding partition walls details
As the ultra high version, pattern 125 movable partition wall systems are made up of a series of individual partition panel with ceiling track which make it be able to slide along the track. These movable sliding partition walls on wheels are widely used in hotels, shops, exhibition centers, exhibition center, colleges, clubs, art centers, stadium, sports centers, offices, testing center, bowling centers, schools, conference center, golf clubs, etc.
Structure of Pattern 125 Movable Sound Proof Partition Wall
The nominal thickness of movable partition wall is 100 mm.
The movable partition wall panel frames are made of standard construction grade aluminum alloy.
Surface panels are available in 12mm thick MDF board, particle board, gypsum board.
Different soundproof material infill and surface material decide the acoustic performance to meet different STC requirements.
Specification
Thickness: 100 mm
Width: 700-1200 mm
Height: 9000-15000 mm
Suspension: Top hang with single or double carrier
Acoustic performance: up to STC 52dB
