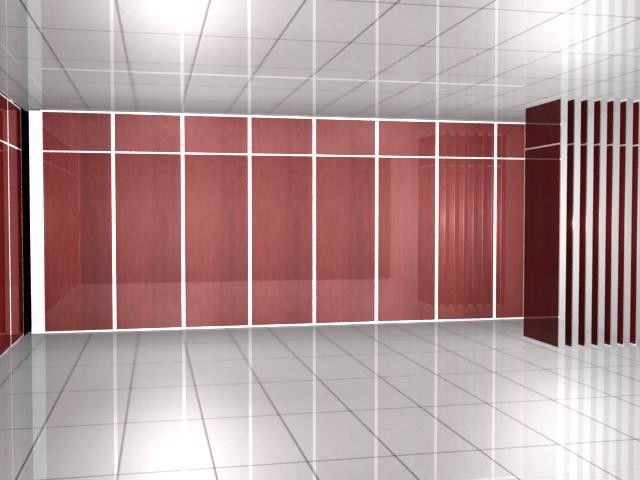

Operable Sliding Partitions Movable Walls Waterproof Folding Partition Walls
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $85-102 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Thickness: | 85 Mm(3 1/4 Inch) |
|---|---|---|---|
| Frame Material: | Aluminum Alloy | Partition Material: | MDF+Aluminum |
| Height: | 2-6 Meters | Finish: | Melamine |
| High Light: | soundproof folding partition,folding room partitions |
||
Product Description
Operable Sliding Partitions Movable Walls Waterproof Folding Partition Walls
How to install the folding partition walls
1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.
2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.
3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.
4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.
5. After the folding partition walls track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.
6. After the folding partition walls track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.
7. The movable folding partition walls should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.
8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.
9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.
10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.
11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.
12. After the door panel is hung, it needs to be debugged. Folding partition walls reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.
Folding partition walls technical information
|
Product name
|
Folding partition walls
|
||
|
Material
|
Melamine+MDF board, or MDF board+acoustic panel, or plaster board+acoustic panel, or magnesium+acoustic board, or sound insulation board+acoustic board.
|
||
|
Finish
|
Anti-fire fabric, anti-fire leather, melamine, fabric acoustic panel.
|
||
|
Thickness
|
65mm, 85mm, 100mm
|
||
|
Width
|
800-1200mm
|
||
|
Max height
|
4500mm
|
||
|
Acoustic reduction coefficient
|
30-45 dB
|
||
|
Hermetic bar flex distance
|
46-60mm
|
||
|
Weight
|
18-35 kg/m2
|
||
|
Environmental
|
E1 grade
|
||
|
Application
|
Exhibition hall, international conference center, any places where need to be separated and full used easily.
|
||
Folding partition walls advantags:
Folding partition walls with high rated acoustical control assures privacy for businesses in which confidentiality and quiet professiona are major concerns.Over many years of experience has taught us to begin each new project by considering the needs of the people who will be using our products.
Folding partition walls offer the ultimate in freedom, flexibility and value.
Areas can be divided into a virtually unlimited range of room or space configurations as often as several times a day, which is a common situation for busy restaurants nowadays.
Now you can quickly change room sizes and configurations to meet changing needs in your space. Folding partition walls goal is to meet those demanding criteria on every commercial project.
