Elegant Sound Insulation Restaurant Partition Wall 100mm Thickness
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 100 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Color: | Customized |
|---|---|---|---|
| Thickness: | 100 Mm | Service: | OEM ODM |
| Height: | Max 8000 Mm | Style: | Modern |
| High Light: | acoustic folding partition,folding room partitions |
||
Product Description
Aluminum Sliding Door Operable Soundproof Movable 100 mm Partitions Wall For Restaurant
The product description

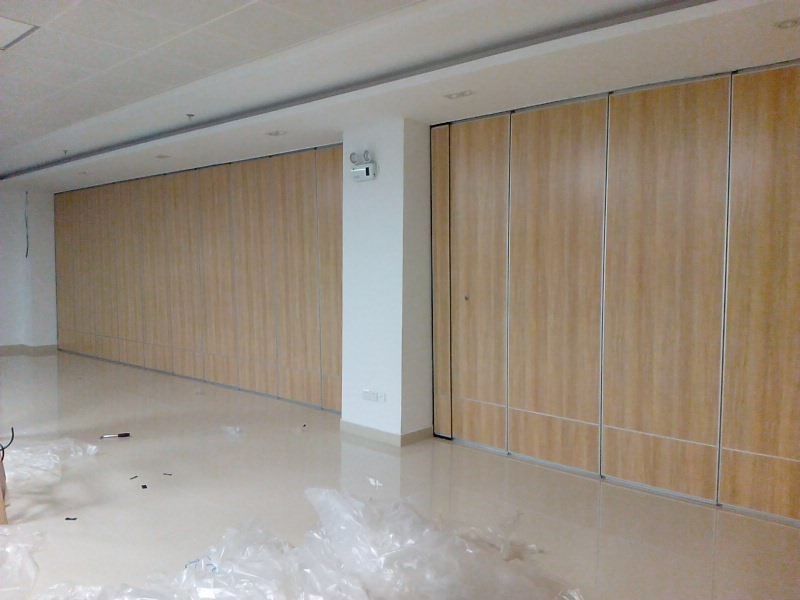

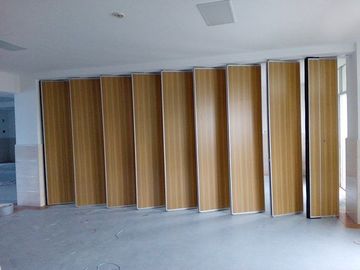

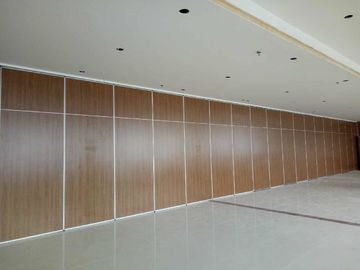

Sound insulation movable wall is hanging on ceiling , able to right-angle turn 90 degrees freedom to travel, can flexibly to promote to other collection space, can need according to different space use, the interval of the multiple independent small space. he vertical contact of each single partition is connected by concave and convex positions, embedded with sealing tape, and the upper and lower top are equipped with a telescopic sound insulation sealing mechanism. he sound transmission is well considered, which greatly improves the sound insulation seal of the partition.
Partition model has 65 (65mm thick), 85 (85mm thick), 100 (100mm thick), ultra high type, partition datum material has gypsum board, medium fiber board, glass magnesium board, color steel plate, sound-absorbing board, melamine board and other panels to choose from, its structure and frame using 6063-t6 reinforced aluminum alloy production.
Mobile partition has the following characteristics:
A. Sound insulation: each wallboard is fixed with A rocker and can be retractable up and down. The edge of the partition board is equipped with special sound insulation cover rubber.The concave and convex coordination between wallboard and wallboard ensures the coherence of each wallboard after it is expanded, effectively prevents the transmission of sound waves, and achieves the effect of sound insulation and heat insulation.
B. Multi-orientation: the hoisting system adopts universal pulley (steel type, nylon mute type), which can facilitate the delivery of each piece of wallboard to any position, and provide the design scheme of track direction and storage space according to customer requirements.
C. Stability: internal steel structure, aluminum frame, with telescopic system, ensuring durability and stability.
D. Integrity: no track is set on the ground, which ensures the integrity of the decorative style.
| Modernized Soundproof Movable partition | |
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance, Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels, exhibition halls, restaurants, multi-functional rooms etc. |
Cooperation steps
Step 1: send us an inquiry.
Step 2: send us detailed engineering drawings or dimensions.
Step 3: we offer solutions and quotes.
Step 4: negotiate and discuss details.
Step 5: place the order and arrange the deposit.
Step 6: make detailed construction drawings and review before production.
Step 7: determine the construction drawing and arrange production.
Step 8: quality control and inspection.(production pictures are provided for verification)
Step 9: arrange shipment after receiving the balance.
Step 10: provide installation drawings
Step 11: after sales service
